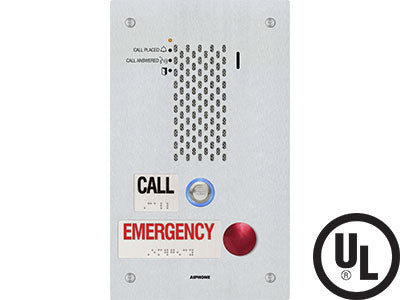

SIP Compatible IP Emergency Station
ADA Compliant with One Call Button and One Emergency Call Button
Need this station with UL Certification? Be sure your model has a UL sticker or contact Aiphone for more details.
- SIP 2.0 Compliant
- Both a Call button and an Emergency call button
- ADA compliant raised lettering and Braille signage
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- Slot for microSD card (not provided by Aiphone)
- IP65 rated, weather resistant
- Stainless steel faceplate
- 2 contact outputs
- 6 trigger inputs
Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
Power Draw: 3.36 Watts @ 48V DC
Audio Codec: G.711 (μ-law, A law), G.722
Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security: IEEE 802.1X
Operating Temp: -40° - 140°F (-40° - 60°C)
Ingress Protection: IP65
Impact Protection: IK08
Dimensions: 10-7⁄16" H x 5-⅞" W
Mounting: Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
