Description

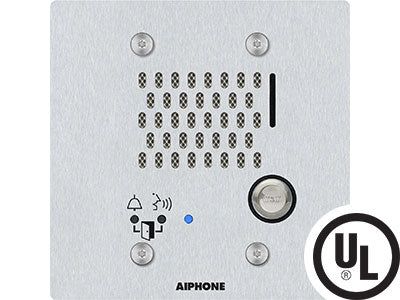

SIP Compatible Flush Mounted IP Door Station
2-Gang Vandal Resistant Stainless Steel Cover
Need this station with UL Certification? Be sure your model has a UL sticker or contact Aiphone for more details.
FEATURES
- SIP 2.0 Compliant
- 802.3af PoE
- Illuminated call button indicator
- IP65 rated, weather resistant (IP65)
- 1 contact output
- 1 trigger input
SPECS
Power Source: PoE (IEEE 802.3af class 0)
Power Draw: 3.36 Watts
Audio Codec: G.711 (μ-law, A law), G.722
Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security: IEEE 802.1X
Operating Temp: -40° - 140°F (-40° - 60°C)
Ingress Protection: IP65
Impact Protection: IK08
Dimensions: 4-¾" H x 4-¾" W
Mounting: Flush mounted with locally available 2-gang box (2-1/2" deep or greater), or surface mount with the SBX-2G/A Stainless Steel surface mount box
