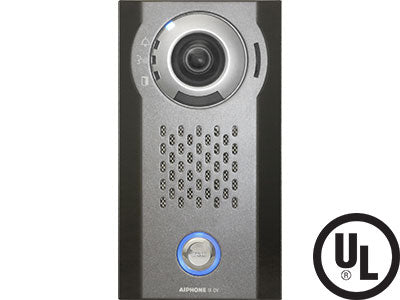

Aiphone IX-DV SIP Compatible Surface Mounted IP Video Door Station

SIP Compatible Surface Mounted IP Video Door Station
Vandal Resistant Aluminum Die Cast Cover

Need this station with UL Certification? Be sure your model has a UL sticker or contact Aiphone for more details.

FEATURES

• Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
• ONVIF® Profile S Compliant
• 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
• 1.23 megapixel fixed color video camera
• Camera vertical adjustment +15º, 0º, or -8º (manual)
• White LED for low light illumination
• Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
• Weather and vandal resistant
• Stainless steel faceplate
• 2 contact outputs (door release, external signaling)
• 6 trigger inputs
• 2-year warranty!

SPECS
Power Source: PoE (IEEE 802.3af class 0)
Power Draw: 5.28 Watts
Camera: ⅓" CMOS 1.23 megapixel
Min. illumination: 5 lux
Audio Codec: G.711 (μ-law, A law), G.722
Video Codec: H.264/AVC, motion JPEG
Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security: IEEE 802.1X
Operating Temp: -40° - 140°F (-40° - 60°C)
Protection: IP54, IK08
Dimensions: 8-1⁄16" H x 4-½" W x 2-1⁄16" D
Mounting: Surface mounted with included bracket.
