Description

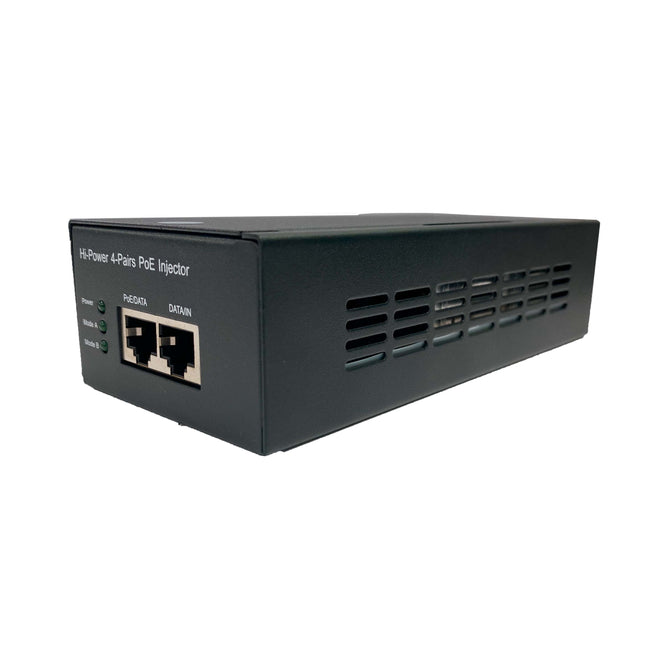

Vision 60 Watt PoE Injector
Features
- Full IEEE 802.3af IEEE 802.3at,IEEE802.3at 4Pairs Compliant
- Up to 60W of Power on 4-pairs
- Auto-detect of POE IEEE 802.3af IEEE 802.3at,IEEE802.3at 4Pairs equipment
- Supports 10/100/1000Base-T applications
- LED indicators power input indication
- Distance up to 100 meters
- Internal AC/DC converter – no need for external power brick
- Easy plug-and-play installation
- Surge protection
|
No. of channels |
1 |
|
Pass Through Data Rates |
10/100/1000Mbps |
|
Power over Ethernet Output |
Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-), Output Power Voltage: 50Vdc User Port Power: 60W |
|
Input Power Requirements |
AC Input Voltage: 100 to 240 Vac AC Input Current: 1A 100-240 Vac AC Frequency: 50 to 60 Hz |
|
Dimensions |
5.7 x 2.4 x 1.6 in (145mm x 60mm x 40mm) |
|
Indicators |
System Indicator: AC Power |
|
Connectors |
Shielded RJ-45, EIA 568A and 568B |
|
Environmental Conditions |
Operating Ambient Temperature: 32 ~ 113°F (0 to 45°C) Operating Humidity Maximum 80%, Non-condensing Storage Temperature: -4 ~ 158 °F (-20 to 70°C) Storage Humidity: Maximum 80%, Non-condensing |
|
Regulatory Compliance |
IEEE 802.3af (15.4W) IEEE802.3at 4Pairs(60W) |
