Description

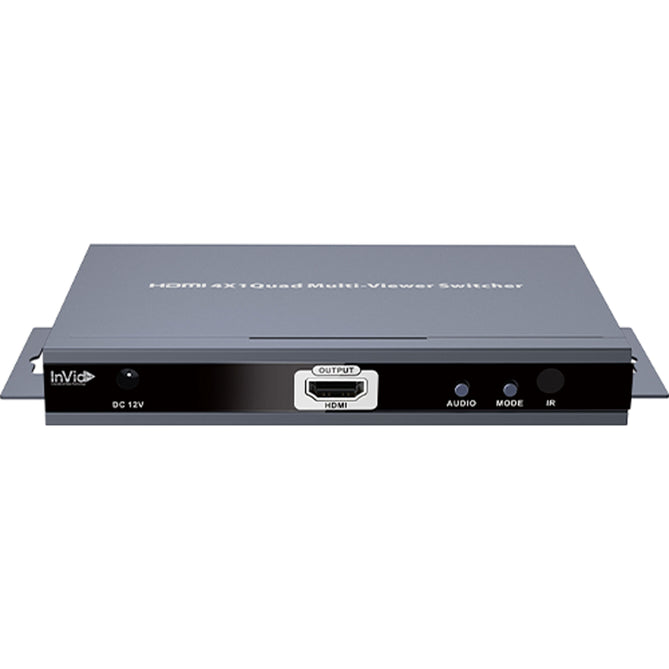

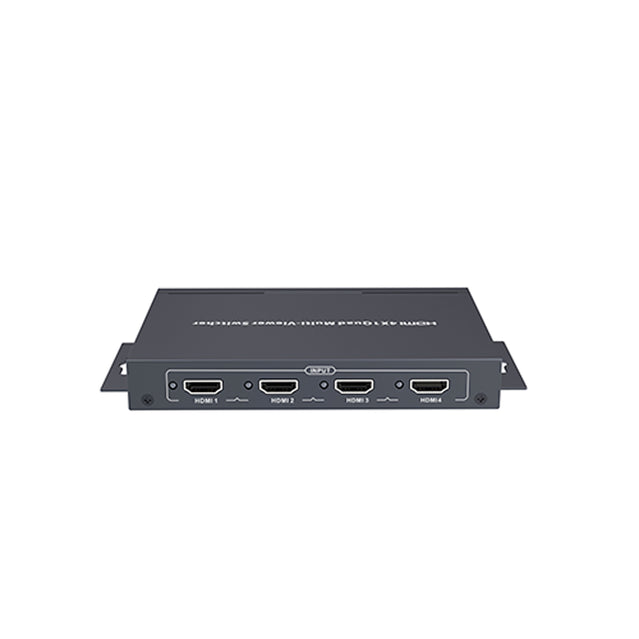

HDMI 4 x1: Quad Multi-viewer Switcher
Technical |
INVID-HDMI4X1 |
|
Input |
HDMI×4( Type A, 19 pin, female) |
|
Output |
HDMI×1( Type A, 19 pin, female) |
|
Video support |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
|
Audio format |
PCM |
|
TMDS signal |
0.7~1.5Vp-p(TMDS) |
|
DDC signal |
5Vp-p(TTL) |
|
Support Modes |

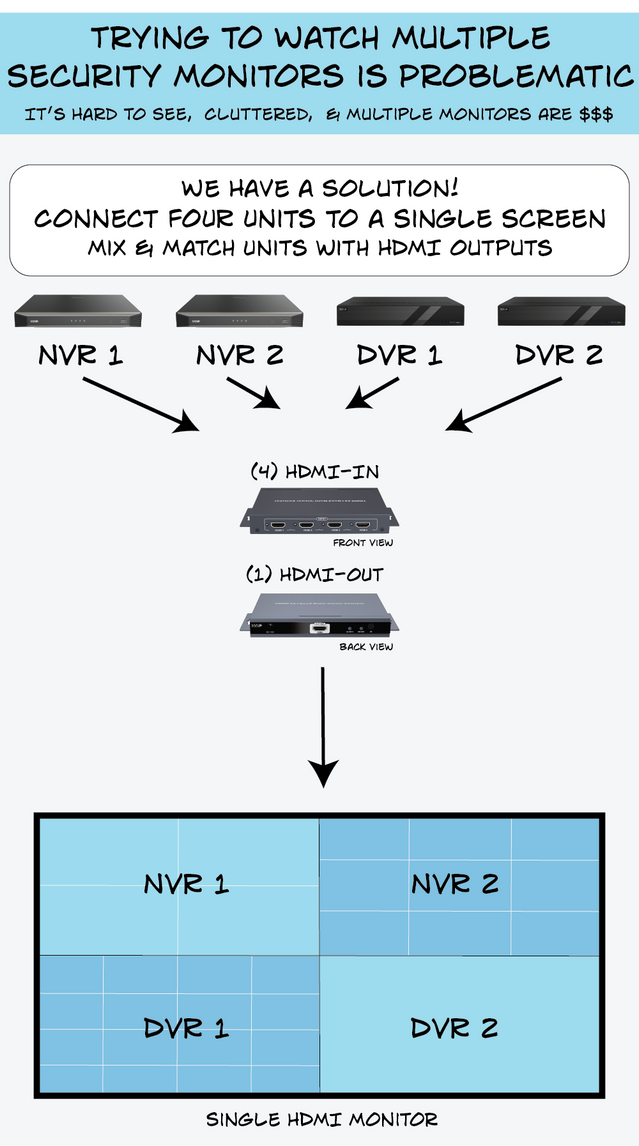

Full screen, Dual screen, Quad screen |
|
MODE control |
Button Control, Remote Control |
|
IR Passback |
n/a |
|
HDCP |
HDCP1.2 |
Mechanical |
|
|
Housing |
Metal enclosure |
|
Dimensions (L×W×H mm) |
178.5×104.74×21.2mm |
|
Net weight |
0.34kg |
|
Fixedness |
Wall-mounting case with screws |
|
Power supply |
12/2A |
|
Power consumption |
<10W |
|
Operation temperaure |
0~40° |
|
Storage temperature |
-20~60° C |
|
Relative humidity |
20-90% (no condensation) |
