Description

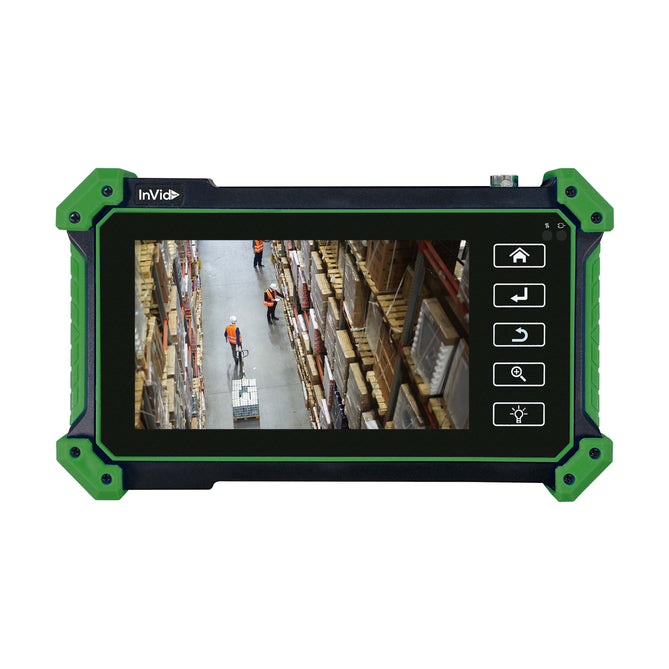

5" Touch Screen IP & HD Analog Camera Tester
Features
- 5 inch IPS touch screen, 1920x1080 resolution
- 8MP CVI/ TVI/ AHD camera test
- H.265/H.264, 4K video display via mainstream
- VGA input, support 2048 x 1152 60FPS
- HDMI input, support 4K 30FPS
- DC12V 3A, 48V PoE power output
- Auto HD, auto recognize HD coax camera type and resolution
- RJ45 TDR cable test, cable quality test
- UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Model |
INVID-CAMTESTER5 |
Display |
New 5 inch IPS touch screen tester, 1920*1080 resolution |
Network port |
10/100/1000M auto adjust, RJ45 |
WIFI |
Built in WIFI, speeds 150M, display wireless camera image |
H.265 Main |
New hardware decoding, 4K H.265/H.264 camera image display by mainstream testing |
IP discovery |
Auto-scan the whole network segment camera IP |
Rapid ONVIF |
Search camera quickly, auto log in and display image from the camera, activate InVidTech camera |
InVid test tool |
Batch activate InVidTech camera, display image from the |
DH test tool |
Batch activate InVidTech, batch modify IP, modify channel, user name and password parameters etc. |
Auto HD |
Automatically recognize type and resolution of TVI/CVI/AHD camera and display image. Support coaxial PTZ and call OSD |
menu |
|
CVI video signal test |
1 channel CVI input(BNC interface, resolution support 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, 2880x1920P 20FPS, 2592x1944P 20FPS, 2560x1440p 25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps, UTC control and call OSD menu |
TVI video signal test |
1 channel TVI input(BNC interface ), resolution support 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, 2592x1944p12.5/20fps, 2688x1520p 15fps, 2560x1440P 18/25/30fps, 2048x1536p 18/25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps, UTC control and call OSD men |
AHD video signal test |
1 channel AHD input(BNC interface), resolution support 8MP AHD camera test, 3840 x 2160P 15 FPS, 2592x1944p 12.5/20fps, 2560x1440p 18/25/30fps, 2048x1536p 18/25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps, UTC control and call OSD menu |
Analog video test |
1 channel BNC Input, NTSC/PAL (Auto adapt) |
Snapshot, Video record and playback |
Capture current images and record live video as JPG file. Media player will view photos and playback video |
HDMI IN |
Support 4K 30FPS, 3840x2160P 30FPS, |
720x480P/60fps720x576P/60fps, 1280x720P/25/30/50/60fps, 1920x1080P/25/30/50/60fps, 1920x1080I/50/60fps, 800x600P/60fps, 1024x768P/60fps, 1280x1024P/60fps |
|
VGA IN |
1 channel VGA Input, support resolution:1920x1200P 60FPS, 1920x1080P 60FPS, 1792x1344P 60FPS, 1680x1050P 60FPS, 1600x1200/900P 60FPS/1440x900P 60FPS, 1360x768P 60FPS, 1280x1024/960/800/768/720P 60FPS, 1152x870P 60FPS, 1024x768P 60FPS, 800x600P 60FPS, 640x480P 60FPS |
TesterPlay |
screen projection: tester, mobile phone and PC display at the same time |
12V/3A power output |
Output DC12V/3A power to camera |
PoE power output |
48V PoE power output, Max power 25.5W |
Theme |
Self-define icons, desktop and application interface background, modify interface sliding effect |
Audio test |
1 channel audio signal input |
PTZ control |
Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
UTP Cable tester |
Test UTP cable connection status and display on the screen. Read the number on the screen |
Power |
|
External power supply |
DC 12V 1A |
Battery |
Built-in 7.4V Lithium ion battery, 3350mAh |
Rechargeable |
After charging 3-4 hours, normal working time 5-6 hours |
Parameter |
|
Operation setting |
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
Auto off |
1-30 (mins) |
General |
|
Working Temperature |
14°F~122°F (-10℃~+50℃) |
Working Humidity |
30%-90% |
Dimension |
7.2 x 4.3 x 1.4 in (183mm x 110mm x 36.5mm) |
Weight |
.7 lbs (0.32kg) |
