Description

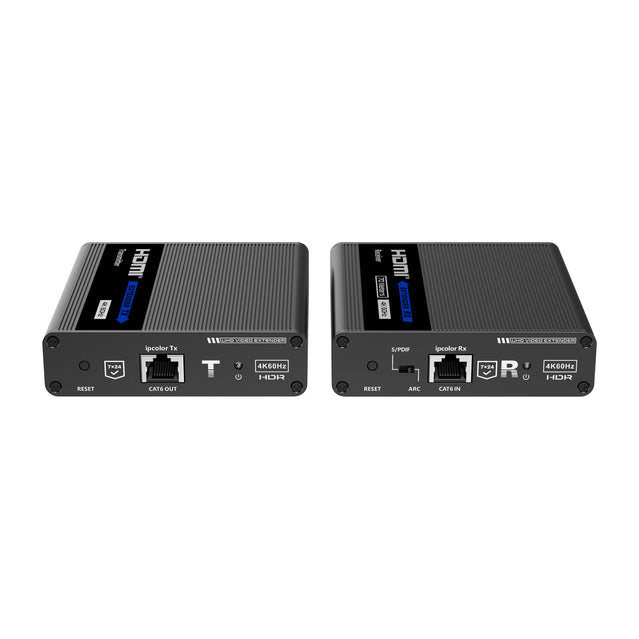

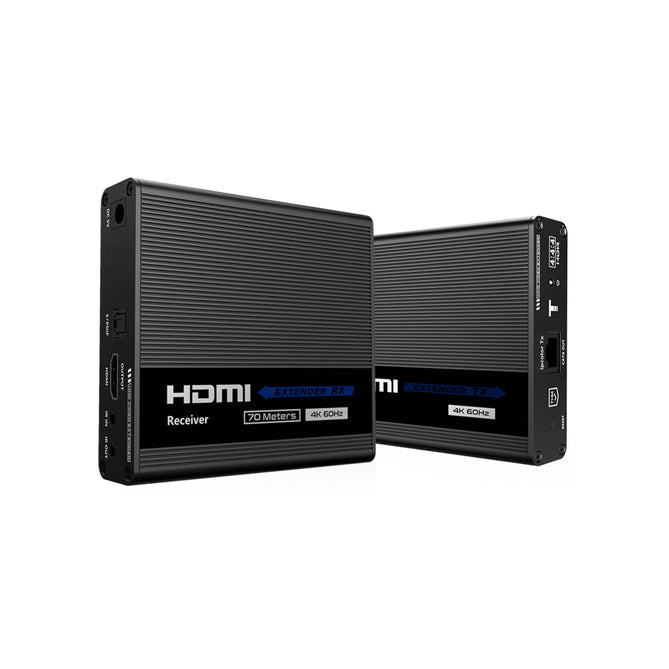

230 Feet (70M) 4K@60Hz (4:4:4/4:4:2) 18Gbps HDMI Extender over CAT6/6A/7 with IR, HDR, S/PDIF port, HDMI loop-out on TX, point to point connection, support ARC & EDID
Paramaters |
|
|
Voltage/Current |
DC5V/2A |
|
Power consumption |
TX<4W |
|
HDMI compliance |
RX<4W |
|
HDCP compliance |
HDMI2.0 HDCP 2.2 |
|
HDMI resolution |
3840x2160@24/25/30/50/60Hz |
|
HDMI Distance |
4K: 12 Foot Distance Maximum 1080p: 25 Foot Maximum Distance |
|
Supports audio formats |
LPCM/DTS-HD/DTS-Audio/Dolby TrueHD 7.1CH/Dolby Digital 5.1CH |
|
Input and output |
0.7~ 1.2Vp-p(TMDS) |
|
Input and output |
5Vp-p(TTL) |
|
Input cable length |
≤8m(AWG24) |
|
Output cable length |
≤8m(AWG24) |
|
CAT6/6A/7 |
≤70m |
|
Electrostatic protection |
1a Contact discharge level 3 1 b Air discharge level 3 |
|
Working temperature |
-4°F ~140°F (-20°C ~60°C) |
|
Storage temperature |
-4°F ~140°F (-30°C ~70°C) |
|
Humidity (no condensation) |
0~ 90% RH |
|
Dimension (L × W× H) |
4.2 x 3.9 x 1 in (106 x 99 x 26.2mm) |
|
Material |
Aluminium alloy material+crystal panel |
|
Treatment process |
Grit blast |
|
Color |
Black |
|
Weight |
TX: 46lb (210g) RX: .46lb (210g) |
