Description

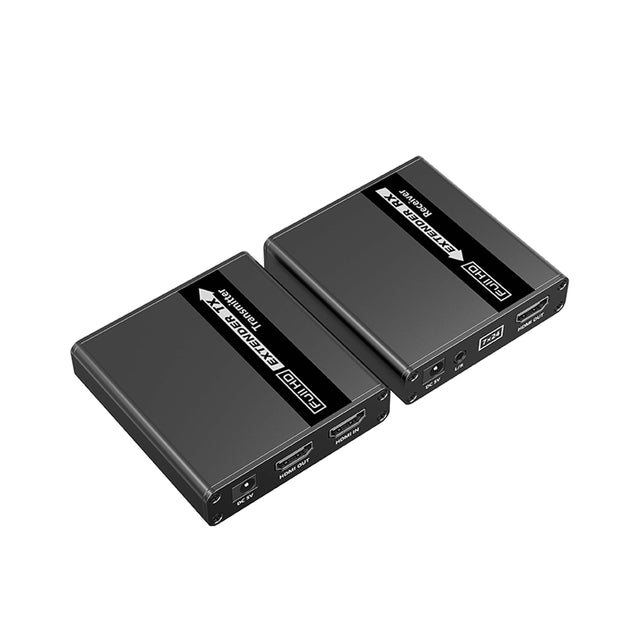

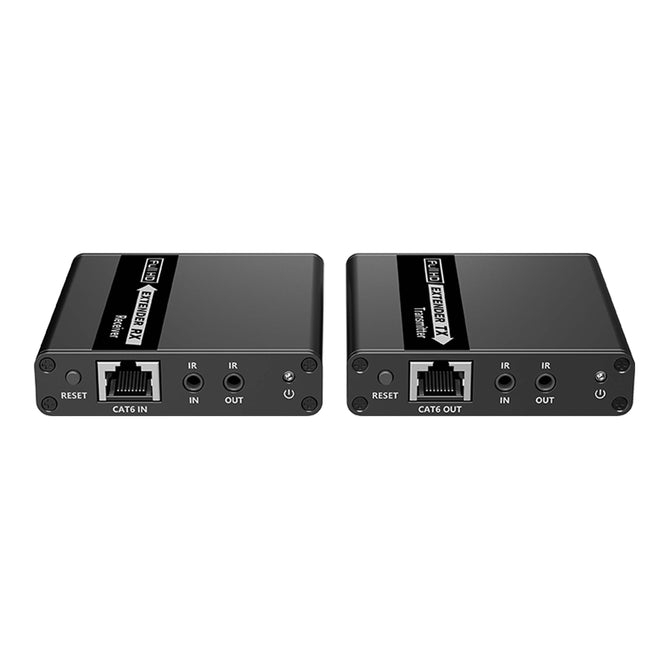

230 Feet (70m) 1080P@60Hz HDR10 YUV 4:4:4 HDMI Extender over CAT6/6A/7 with IR, HDMI loop-out, EDID management, point to point
Power Supply |
|
|
Voltage/ Current |
DC5V/1A |
|
Power consumption |
TX <2.5W RX < 2.5W |
HDMI Performance & Interface |
|
|
HDMI Compliance |
HDMI1.3 |
|
HDCP Compliance |
HDCP1.4 |
|
HDMI Resolution |
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz |
|
HDMI Distance |
1080p: 25 Foot Maximum Distance |
HDMI Performance & Interface |
|
|
Supports Audio Formats |
PCM/LPCM/DTS-HD/DTS-Audio |
|
Input & Output TMDS Signal |
0.7~1.2Vp-p (TMDS) |
|
Input & Output DDC Signal |
5Vp-p(TTL) |
|
Input Cable Length |
≤8m (AWG24) |
|
Output Cable Length |
≤8m (AWG24) |
Transmission Distance |
|
|
Cat6/6A/7 |
≤70m |
Protection Level |
|
|
Electrostatic Protection of the Whole Machine |
Implementation of the standard: IEC61000-4-2 1a Contact discharge level 4 (8KV) 1b Air discharge level 4 (15KV) |
Operating Environment |
|
|
Working temperature |
-4°F ~140°F(-20°C ~60°C) |
|
Storage temperature |
-4°F ~140°F (-30°C ~70°C) |
|
Humidity (no condensation) |
0~90% |
Body Properties |
|
|
Dimension (L x W x H) |
3 x 3.15 x .71 in (75 x 80 x 18 mm) |
|
Material |
Aluminium alloy material+crystal panel |
|
Treatment Process |
Grit blast |
|
Color |
Black |
|
Weight |
TX: .35lb (160g) RX: .35lb (160g) |
