Authorized Aiphone Reseller

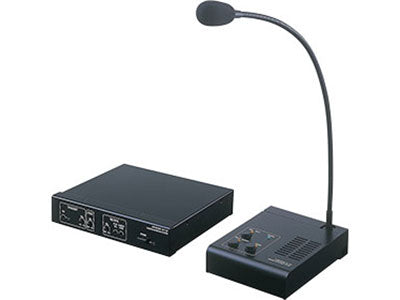

Aiphone IMU-100 Controller and Operation Station Kit for IM System

AiphoneSKU: IMU-100

Sale price$827.22
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800



  • VOX sensitivity adjustment
  • VOX operation LED
  • Transmit, speaker, receive, and standby volume control
  • Ambient noise cancelling control
  • Can be desk mounted or mounted under the counter with the supplied bracket
  • Volume control switch (hi / lo)
  • Socket for optional gooseneck microphone
  • Designed for desk mounting
  • Can mount up to 6′ away from the MU-100 via the supplied connector


Temp. Rating: 14°~ 140°F (-10°~ 60°C)

Hands-free (VOX) or push-to-talk (simplex)
Transmit output: 3W 4?
Receive output: 1.5W 16?

3.5mm plug
Rated input:
40mW or more
Max. input:
100mW or more
Impedance: 32?

Wire Type: Speaker Driver to Control Unit: 2 x 2-cond., overall shield - use Aiphone #822202 or #821802

Distance: Speaker Driver to Control Unit: 66'(22AWG / 18AWG)
