Description

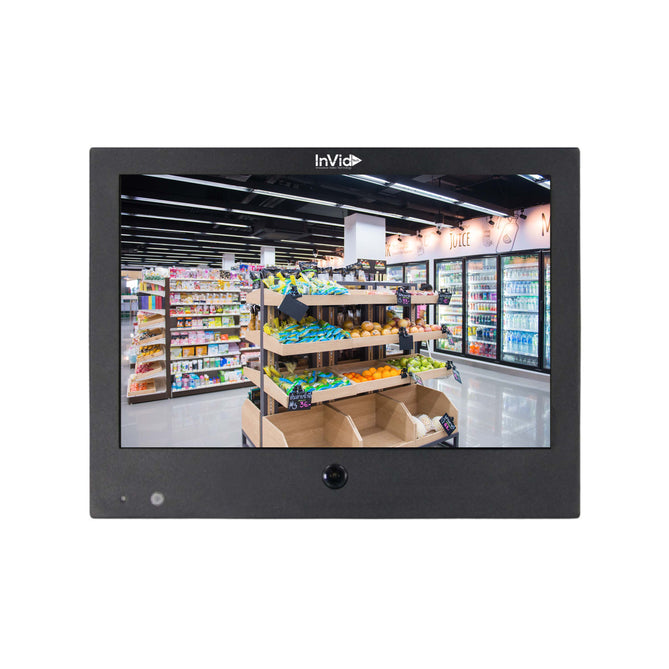

7" HD Analog PVM Monitor, (2) HDMI, VGA, RJ 45 PoE Input, BNC Output, 5 MP Built-in Camera, PoE+ powered monitor
Features
- 7” HD Screen
- Up to 5MP Resolution
- Built-in Camera with 2.8mm Lens
- Supports TVI/AHD/CVI/CVBS
- Powered by DC12V or PoE+. A PoE+ switch or injector is required. Minimum of 30-watts required
- 250cd/m2
- (2) HDMI Input
- (1) VGA Input
- (1) BNC Output
Display Characteristics |
|
|
Screen Size |
7'’ |
|
Active Display Area (W x H) |
154.08 × 85.92 mm |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Display Color |
16.7M |
|
Pixel Pitch (H x V) |
0.1926 × 0.1790 |
|
Brightness(nits) |
250cd/M 2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (H/V) |
178 /178 |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI |
2 |
|
VGA |
1 |
|
BNC (Signal output) |
1 |
|
RJ 45 (POE Input) |
1 |
Camera |
|
|
Lens |
DC Iris 2.8 Fixed lens, SONY IMX335 Sensor |
|
Video Output |
TVI: 5/4/2 MP AHD: 5/4/2 MP CVI: 4/2 MP |
|
Video Output Default |
TVI @5MP |
|
Illumination |
Illumination, 0.01Lux@(F1.2,AGC ON), 0LUX with IR, Support IR-CUT switching |
Power & Mount Way |
|
|
Power |
DC12V ,50/60Hz or PoE+ Input, AT Standard |
|
Working Temperature |
-22°F ~ 185°F (-30°C ~ 85°C) |
|
Power Consumption |
<7.5W |
|
Menu |
Chinese/English (other languages supported) |
|
Mounting/Weight |
Stand mount, VESA mount/2kg 75 x 75 |
|
MTBF |
50000Hours |
|
Dimension size |

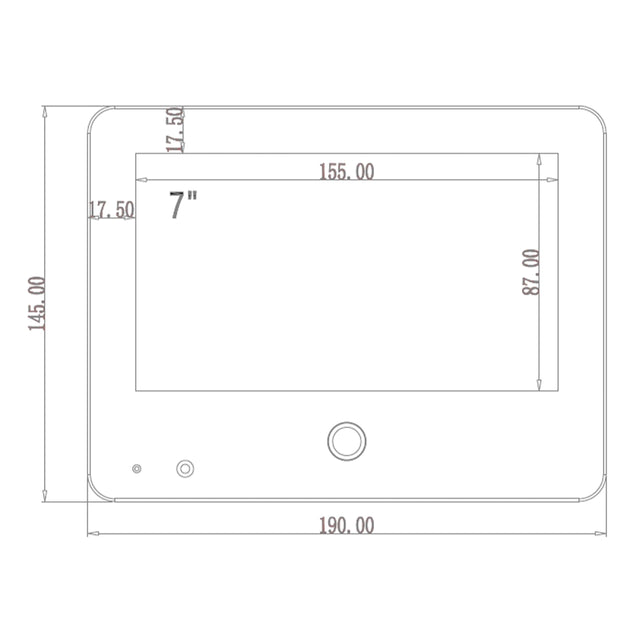

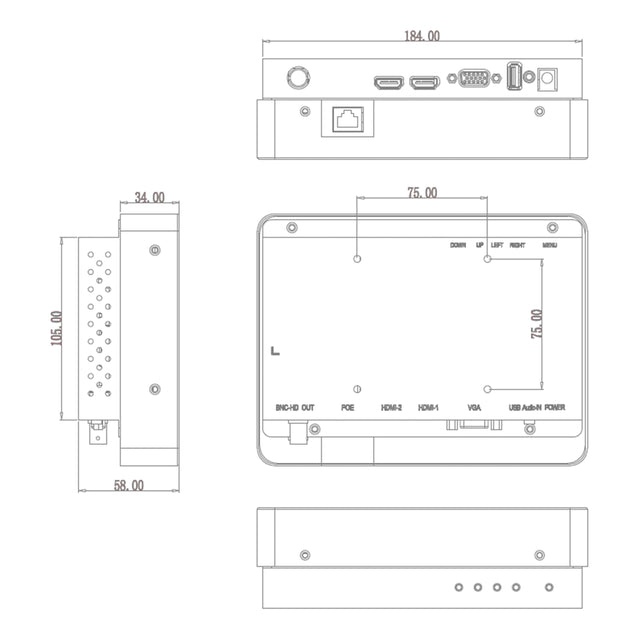

7.5 x 5.6 x 1.3 in (190*142*33mm) |
Accessories |
|
|
Included Accessories |
Wall mount, Industrial PSU, Screw, Cable holder, Quick start guide |
