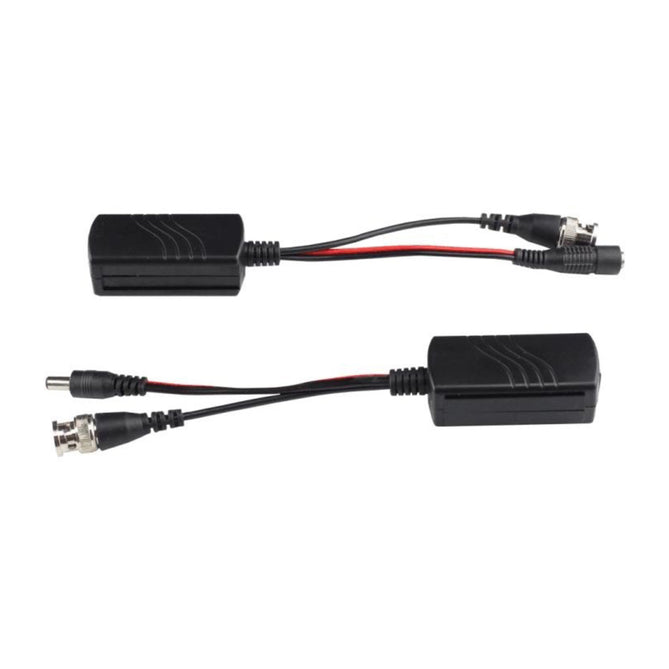

Invid IA-HDBAL2 HD Video Balun

InvidSKU: IA-HDBAL2

Price:
Sale price$28.16
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

HD Video Balun

Features

  • Hybrid Passive Balun/No Power Required
  • Real-time Transmission over UTP cat5e/6
  • Compatible with all HD-TVI,CVI AHD, 4K analog camera
  • Stackable Design, Extend One Channel to Multi-Channel
  • RJ45 Jack for UTP cable
  • Real-time Transmission over UTP CAT5E/6
  • Super Interference Rejection
  • Transmission Signal: 1080P, Max.250M 720P,Max.300M 4K, Max 200M
  • Built-in Surge & Transient Protection & Lightning Protection

Model


Product Name

Single Channel HD Video &Power Transmitter & Receiver

Applied Devices

CCTV Cameras , Monitors, DVR and other CCTV equipments

Video


Video Format

PAL, NTSC, SECAM

Operating Frequency

DC to 42MHz

Max Distance

720P 300m, 1080P 200m, 4K 200m

Common-mode/

Differential-mode Rejection

15KHz to 42MHz, 60 dB typ

Impedance

Coax, Male BNC 75 ohms unbalanced UTP, RJ45 100 ohms balanced

Attenuation

1.5 dB typ Max

Wire Type


Network Wiring

One Unshielded Twisted Pair(for each video signal) 24-16AWG (0.5-1.31mm)

Category Type

2 or better

Impedance

100±20 ohms

DC Loop Resistance

52 ohms per 1000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 Pf/m max)

Power


Power Input

No external Power Required

Power Transmission

12VDC/24VAC, via UTP CAT5E/6

Connector


Video Input/Output

Male BNC Connector

Video Input/Output

RJ45 Jack

Protection


Surge Protection

Renewable Solid State Surge Protection

Video Input

2KV(common mode), 10/700us IEC6100-4- 5/1955 (GB/T 1726,5-1999)

Video Output

2KV(common mode), 10/700us IEC6100-4- 5/1955 (GB/T 1726,5-1999)

Mechanical


Housing

ABS engineering plastic

Body Color

Black

Dimensions (L*W*H)

2.4 x 1.14 x .8 in (60.4*29*20.4 mm)  (BNC Connector & cable excluded)

Net Weight

.18lb (80g)

Environmental


Operating Temperature

14°F ~ 131°F (-10°C ~ 55°C)

Relative Humidity

0~95% (non-condensing)
