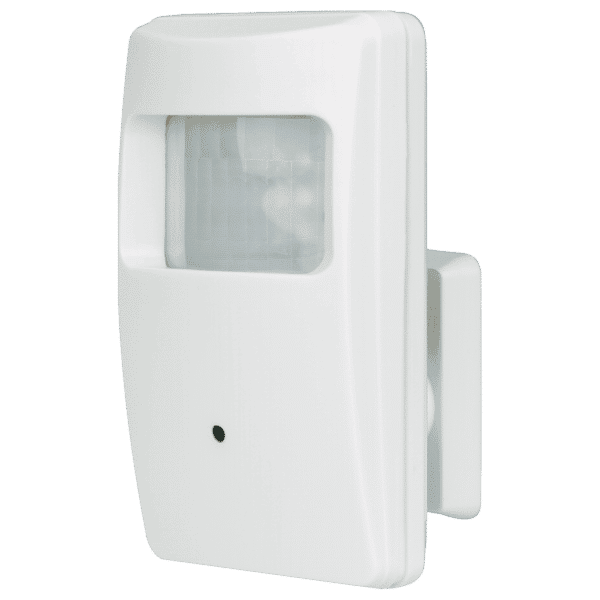

Seco-Larm EV-Y6501-A3WQ 4-in-1 HD TVI, CVI, AHD, Analog Covert PIR Camera

Seco-LarmSKU: EV-Y6501-A3WQ

Price:
Sale price$74.25
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

  • 5MP Resolution
  • 1/2.8” 5MP Sony CMOS
  • Joystick OSD Control
  • ICR Module
  • 2DNR (2D Digital Noise Reduction)
  • D-WDR (Digital Wide Dynamic Range)
  • 3.7mm Covert pinhole lens
  • 18 Covert IR LEDs for discreet monitoring
  • Camera is hidden in a non-functioning PIR sensor housing



Specifications

Formats TVI (Default) / CVI / AHD / Analog
CMOS 1/2.8″ 5MP Sony CMOS
Resolution (HD) 2592×1944, 1440p
2DNR Yes
D-WDR Yes
OSD (On-Screen Display) Yes
Cable OSD control Yes
Megapixels 5MP
Lens 3.7mm Pinhole Lens
Viewing Angle 120°
# of IR LEDs 18 Covert (940nm)
IR Range Up to 50ft (15m)
FPS 20FPS
F Stop 2.2
Minimum illumination – IR On 0.1 Lux
Minimum illumination – IR Off 0.01 Lux
S/N Ratio >50dB
Shutter control AES (Auto Electric Shutter), 1/60~1/50,000 s
Gain control Yes
Operating voltage 80mA@12VDC
IP Rating IP65
Operating temperature -4°~140° F (-20°~60° C)
Dimensions 4-1/16″x2-3/8″ x1-5/16″ (104x60x34 mm)
Weight 12.3-oz (350g)



Troubleshooting

The screen is black
  •  Check that the camera is powered up.
  • Check that the power supply’s polarity is correct.
  • Check that the monitor is powered up.
  • Check that the video cable connecting the camera to the monitor is connected properly.
The screen image is dim
  • Clean the lens using a soft, clean cloth.
  • Check that the light source is adequate.
The screen has poor contrast
  • Adjust the monitor’s contrast knob
  • Change the position of the camera
The screen image flickers
  • Change the position of the camera, check cables and format setting
The screen image is distorted.
  • Change the position of the camera, check cables and format setting
The camera case is hot
  • Check that the correct power supply is in use
The image is foggy or washed out at night
  • Check that there are no objects very close to the camera
  • Check that there are no highly reflective objects in the scene
IR LEDS do not turn on
  • Check that the correct power supply is in use
