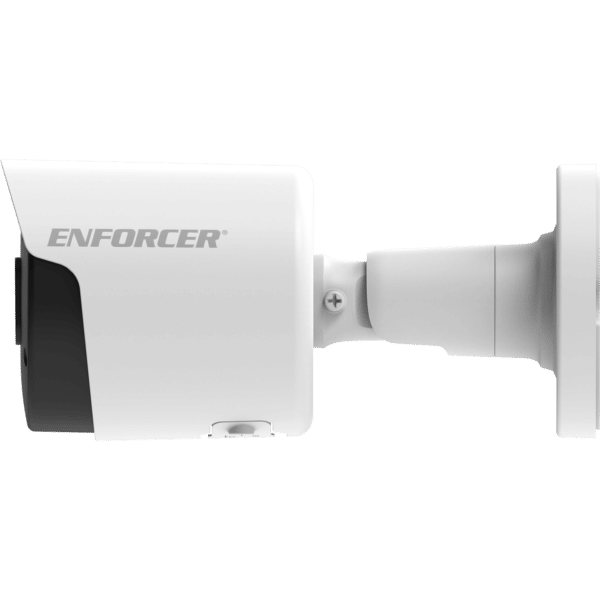

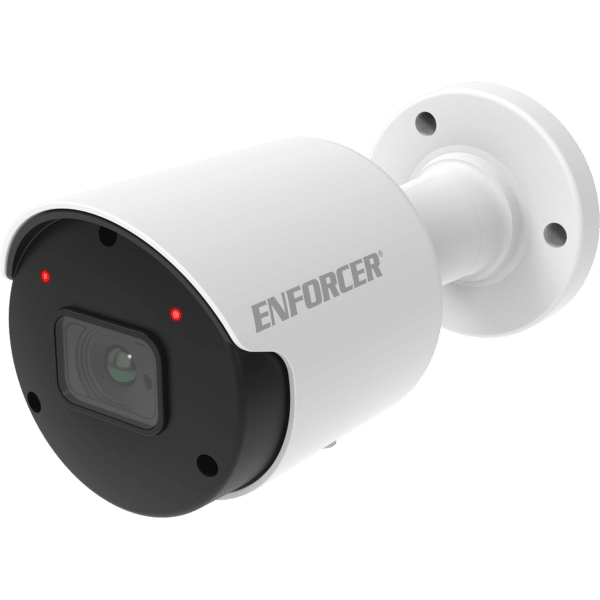

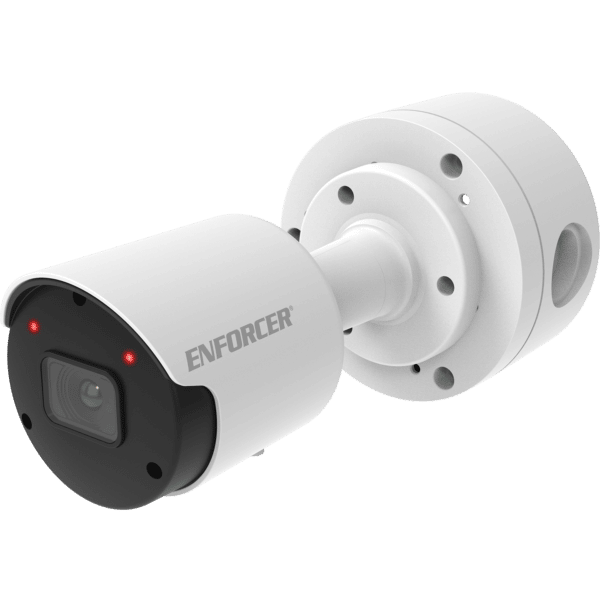

Seco-Larm EV-N1506-2W4Q IP Fixed Bullet Camera

Seco-LarmSKU: EV-N1506-2W4Q

Price:
Sale price$58.73
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

  • 1/2.7″ 5MP SMARTSENS CMOS
  • H.265/H.264, Tri-stream IP Camera
  • 12VDC, PoE 802.3af
  • True Day & Night function with ICR mechanism
  • IR Range up to 98′ (30m)
  • Max. 20FPS/5MP, 1440p (2592×1944)
  • Weather-resistant (IP66)
  • D-WDR
  • 3DNR
  • ONVIF Profile S, Profile G



Specifications

Type Fixed Bullet Camera
Sensor 1/2.7″ 5MP SMARTSENS CMOS
Video encoding H.265/H.264
Megapixels 5MP
Resolution 1440p, 2592×1944
3DNR Yes
Scanning system Progressive 1080p
# of IR LEDs 2pcs (850nm)
Lens 2.8mm
Viewing angle 131°
Minimum illumination 0.05 Lux
F Stop 1.2
Gamma correction Auto
Gain control Auto
White balance Auto
Operating voltage 12VDC, PoE 802.3af
Current Draw – IR Off 80mA max.
IP Rating Weatherproof IP66
Operating temperature -22°~131° F (-30°~55° C)
Dimensions ø2-13/16″x5-15/16″ (ø71×151 mm)
Weight 13.4-oz (370g)



Troubleshooting

The screen is blank.
  • Check that the camera is powered up.
  • Check that the power supply’s polarity is correct.
  • Check that the monitor is powered up.
  • Check that the video cable connecting the camera to the monitor is connected properly.
The screen image is dim.
  • Clean the lens using a soft, clean cloth.
  • Check that the light source is adequate.
The screen image has poor contrast.
  • Adjust the monitor’s contrast knob.
  • Change the position of the camera.
The screen image flickers.
  • Change the position of the camera.
The screen image is distorted.
  • Change the position of the camera.
The camera case is hot.
  • Check that the correct power supply is in use.
