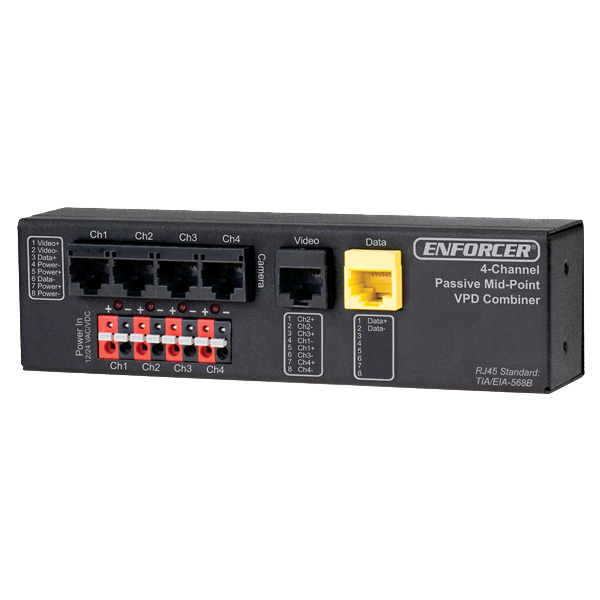

Seco-Larm EB-P304-01MQ 4 Channel Video/Power/Data Passive Midpoint Combiner

Seco-LarmSKU: EB-P304-01MQ

Price:
Sale price$17.33
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

ENFORCER VPD (Video/Power/Data) Combiners work in conjunction with standard passive VPD baluns and RJ45 cables to simplify and organize a large scale CCTV installation. Using this allows for increased flexibility and simplified, more organized cable installation, providing power to cameras while delivering high quality video all over a single CAT5e/6 cable. Troubleshooting is therefore greatly simplified and clutter reduced. ENFORCER VPD Combiners are compatible with all HD analog, including HD-AHD, HD-CVI, and HD-TVI, as well as traditional analog formats.

  • Video, power, and data over a single category cable
  • Compatible with all traditional and HD analog formats, including HD-AHD, HD-CVI, and HD-TVI
  • Used in mid-span applications
  • Supports up to 4 cameras
  • Power LED indicator for each channel
  • Can transfer HD analog video up to 1,476ft (450m)*
  • Use any external low-voltage power supply
*720p HD-CVI video; other formats will have different maximum ranges
Specifications
Type Passive Midpoint
Channels 4
Video Range – CVBS 984’ (300m)
Video Range – HD-AHD 720p: 1050’ (320m); 1080p: 722’ (220m)
Video Range – HD-CVI 720p: 1476’ (450m); 1080p: 820’ (250m)
Video Range – HD-TVI 720p/1080p: 820’ (250m)
Video Format NTSC, PAL, SECAM
Maximum Input 1.0Vp-p
Frequency Response DC to 60MHz
CMMR 60dB, 20kHz~60MHz
Wire Category CAT5e~CAT6
BNC Connection Nickel-plated
Impedance – Coax 75Ω@1MHz
Impedance – RJ45 100Ω@1MHz
Max. Amperage 1A@12VDC/24VAC
Data Range 2,400’ (800m)
DC Loop Resistance 29Ω/1,000’ (9.5Ω/100m)
Differential Capacitance 19pF/ft max (62pf/m max)
Output Voltage N/A
Fuse 1.5A max/CH
Input Power N/A
Input Power Fuse N/A
Operating Temperature -14~140°F (-10~60°C)
Operating Humidity 0~95%, non-condensing
Material Steel
Weight 0.89-lbs (404g)
Dimensions 6-5/16”x1-3/4”x1-5/16” (160mm x 44mm x 33mm)
Troubleshooting
Wavy or ghost image if connected to image processor (e.g., multiplexer or DVR), but not if directly to monitor
  • Move the Cat5e/6 cable away from possible sources of interference.
  • Ensure that the same twisted pair connects to a balun at both ends of the
    cable.
  • Replace the cable with a new Cat5e/6 cable.
PTZ Controls do not work
  • Reduce the Cat5e/6 cable length.
  • Refer to your PTZ camera manual.
Image is wavy and shakes
  • Try reversing polarity of the two wires at one end of the Cat5e/6 cable.
Image is weak or faded
  • Reduce the Cat5e/6 cable length.
  • Replace with a higher-grade cable. Cat5e cable meets the specifications
    in the manual. Cat6 cable allows longer range.
Power LEDs are OFF
  • Check that the power supply is ON
