Description
- 12~250 VAC/VDC.
- Weatherproof (IP66) construction for indoor/outdoor usage.

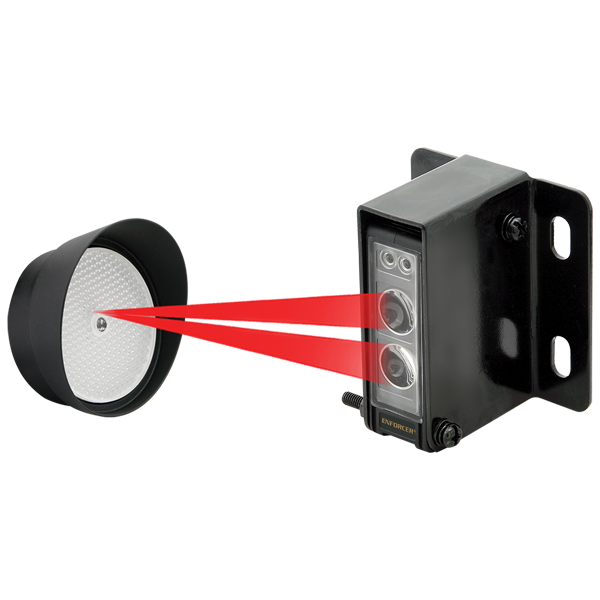

- Includes 3-inch round reflector and hood.
- Pre-wired 6ft (2m) Cord.
- Bracket and mounting hardware included. Includes two sensor mounting brackets.
- Adjustable sensing distance and response time – 5~100ms.
Typical Applications
- Sensor for garage doors, outdoor gates or overhead doors.
- Sensor for industrial automation to detect objects on manufacturing line.
- Entry detection for store fronts.
- Assist in measuring parking distance.
- Alarm sensor.
Specifications
| Type | NIR Reflective |
| Current Draw | Standby- 70mA@12VDC, Active- 55mA@12VDC |
| Sensing Range | 0.5′ to 45′ (0.1 – 14m) |
| Operating Voltage | 12~250 VAC / VDC |
| Reaction time | 5ms~100ms adjustable |
| Light Source | IR LED |
| LEDs – Red | Trigger |
| LEDs – Yellow | Alignment |
| Output | SPDT Relay Output (NO/NC/COM) |
| Switching Capacity | 3A@120VAC / 3A@30VDC |
| Operating Temperature | -4º~131º F (-20º~55º C) |
| Enclosure | IP66 Waterproof |
Troubleshooting
| Sensor does not detect the object. |
|
| Yellow LED does not turn on |
|
| Red LED lights when object is detected, but no output. |
|
