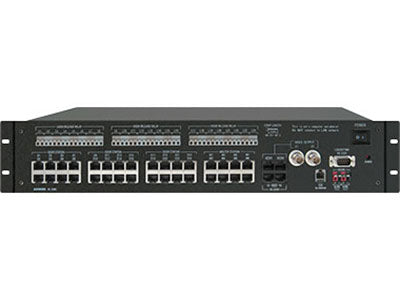

Aiphone AX-248C Central Exchange Unit for 24 Door Stations / Subs, 8 Master Stations

FEATURES

• Wiring hub for AX Series using Cat-5e
• Two 24V DC power supply input terminals
• Rack mountable
• Controls all functionality of AX Series
• Two BNC composite video outputs and video switching triggers
• CO line transfer (requires Viking K-1900-5 programmable auto-dialer)
• Programmable functionality via supplied software

SPECS
Consumption: Video: 0.62A max. Audio: 0.65A max.
CO Line Port: RJ11 for Viking K-1900-5 programmable auto-dialer
Door Release: Programmable dry contact, 24V AC/DC 500mA (use RY-24L for larger contact rating)
Mounting: 19" EIA rack (2U) or wall mount

Wire Type:
Between Door / Sub Station, Master Station, and Central Exchange Unit: Cat-5e
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield - use Aiphone 821802

Wire Distance:
Door / Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980'
Central Exchange Unit to Master: 980'
Central Exchange Unit to Add-On Central Exchange Unit: 16'
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG) 33'(18AWG)
