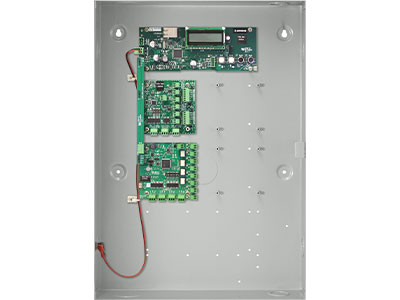

The ACS-ELV Elevator starter kit provides elevator access control to a single elevator cab for up to eight floors. It can be expanded to two cabs with up to 64 floors (split in intervals of eight) with the addition of seven AC-IOE expansion boards.
- Two Wiegand inputs
- Eight solid state dry contact relays and inputs per AC-IOE
- NDAA and TAA compliant
Power Source: PoE (IEEE 802.3af)
Motion Sensor: Infrared
Lock Power: 12V DC, 500mA
Option Power: 12V DC, 300mA
Contact Rating: 24V DC, 1A
Protocols: IPv4, IPv6, TCP, UDP, HTTPS
Reader Inputs: Wiegand
Card Storage: Up to 100,000 user credentials
Event Storage: Up to 50,000 events (first in, first out)
UL Listing: UL 294/ULC 5319-05
Dimensions: 3-1/2" H x 10" W x 2-3/16" D
