Description
- Flexible inputs and outputs
- Integrate with lifts, heating, lighting & more
- Connects directly to LAN/WAN only
- 4 mains rated relay outputs per board
- 4 inputs per board
- For use with Net2 triggers and actions

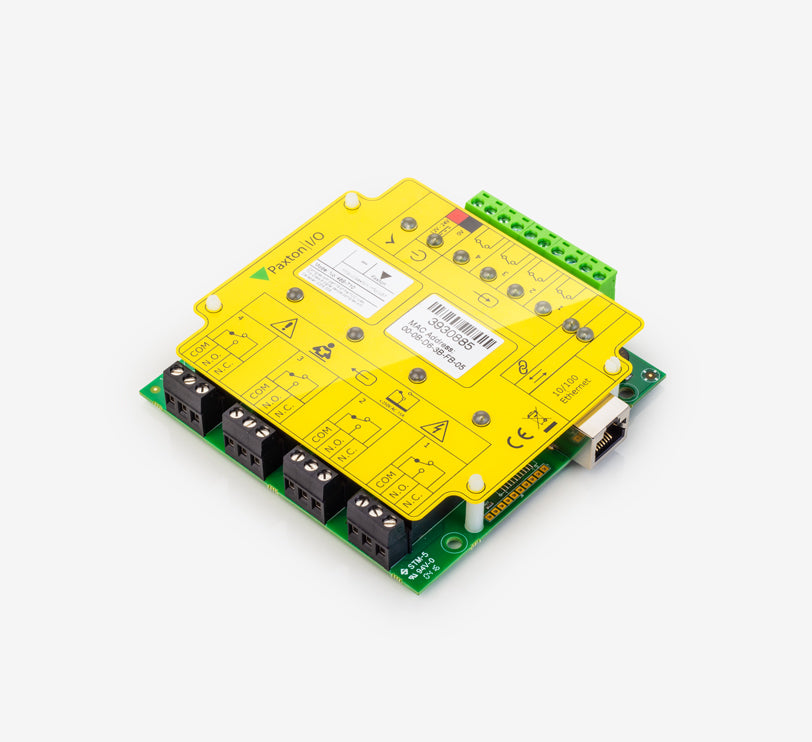

About – The Net2 I/O board consists of 4 inputs and 4 outputs. It connects directly to a LAN/WAN via an onboard RJ45 connector. I/O boards can be distributed around a building as required. Inputs and outputs can be controlled using the Net2 software ‘triggers and actions’ feature. The I/O board can be supplied as PCB only, in a plastic housing or mounted within a 2A boxed metal/plastic mains monitored backup power supply.
Installation – The unit is provided with a label clearly showing the connections. The I/O board is fitted with the same ‘rising clamp’ connectors as the Net2 control unit.
Operation – The I/O board’s inputs and outputs are configured using the Net2 software ‘triggers and actions’ feature.
