Description
- Use with Switch2 or Net2
- Designer reader to match building interiors
- 3 standard inserts are available
- 3 bezel styles are available
- Drawing provided for custom inserts

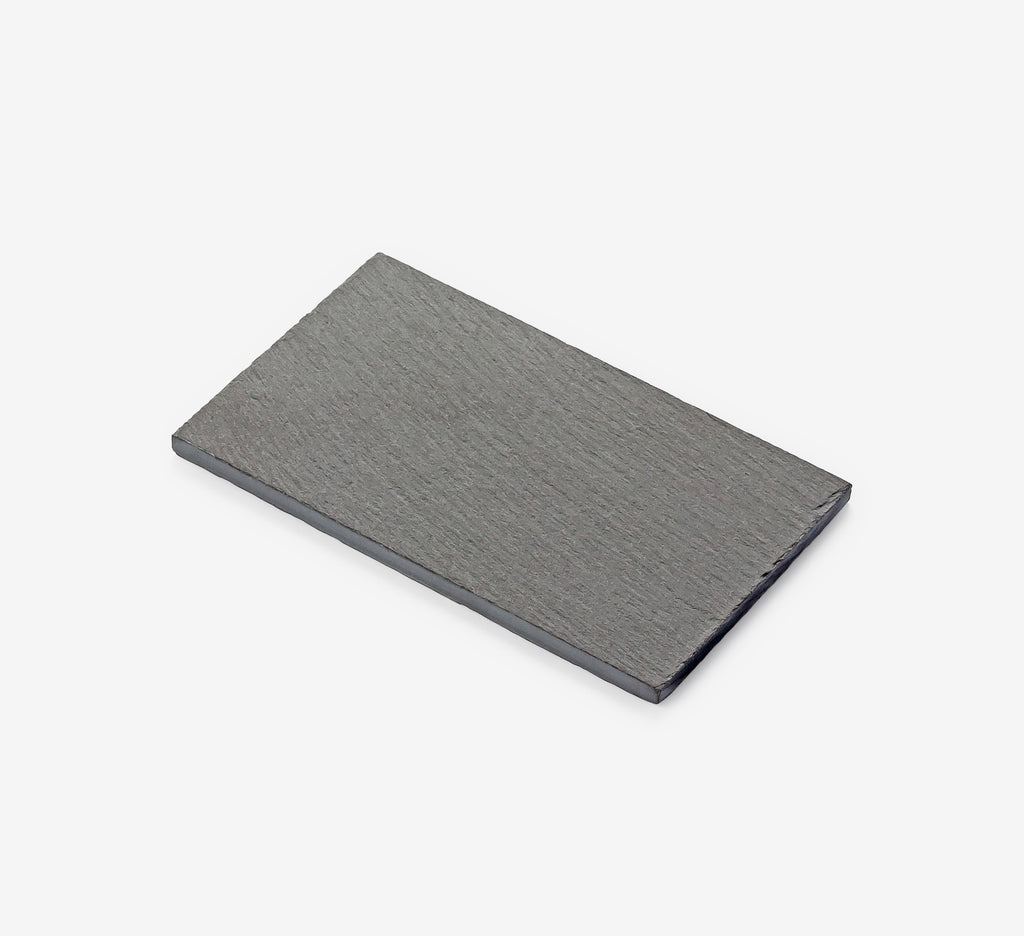

About – The Proximity architectural reader has been designed to fit discreetly and stylishly into installations where aesthetics are paramount. The reader is manufactured using high-quality materials and has 3 high-intensity LEDs. The reader consists of two main parts, the reader and the insert. 2 standard types of the insert are available; glass and stone. We can supply the dimensions of the insert to allow the use of other non-metal materials (see the insert drawing in the web links box on this page). This gives limitless possibilities for installing a reader that is truly sympathetic to its environment.
The reader itself is also available in 3 finishes.
Please note: The Proximity architectural reader inserts are sold separately and do not come supplied with the reader.
We have added Genuine HID Technology to the majority of our Paxton readers, they can now read HID 125kHz Proximity tokens, when licensed with an activation card. If required these readers can still be enabled to have Wiegand output, via a separate activation card.
Installation – The architectural reader is designed to be partially sunken into the wall and is fitted using a backbox that is provided as part of the product.
The reader is suitable for use with Switch2 and Net2 systems and is wired using the color coding on the control unit label.
Operation – A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is granted or denied as appropriate. If access is granted the reader LEDs show green. If access is denied the reader LEDs show red. At other times the reader LED’s maintain a constant white light.
