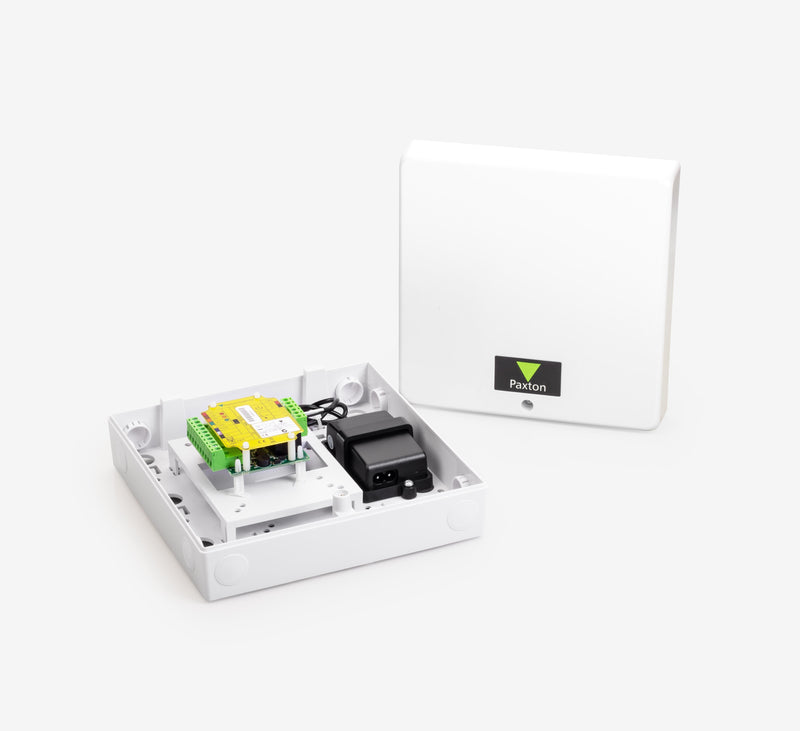

Paxton 242-166-US Switch2 ACU and 1A PSU in plastic housing

PaxtonSKU: 242-166-US

Sale price$125.95
Usually ships within 3-5 business days

Prefer to order over the phone?
Our team of experts is a phone call away!
Call us at 718-435-2800


  • Separate control unit - high security
  • Read in and read out
  • Use with PROXIMITY, CARDLOCK, or TOUCH LOCK readers
  • Card plus PIN
  • Up to 50 codes or 10,000 card users
  • Control over access by token color

About – Switch2 is a single-door control unit. The control unit stores the access permissions of the user and is mounted within the building. This makes the system suitable for high-security applications.

Switch2 can be used with PROXIMITY, CARDLOCK, or TOUCH LOCK readers. Switch2 can be installed on many doors over a site, all using the same tokens. Two readers can be connected to a single unit to give read-in and read-out access control.

Installation – There is a label on the Switch2 unit that clearly shows connections for a reader, lock, power supply, etc. The Switch2 has a voltage-free relay output so it can switch any lock or electrical device. Door contacts can be connected to the unit. Output is available when used with door contacts to give a door forced alarm.

Once installed with PROXIMITY or CARDLOCK readers, present the enrolment card to the reader. All the tokens in the pack are now valid. If using TOUCH LOCK, set up is via the keypad using the master code.

Operation – The operation of Switch2 depends on the mode.

PROXIMITY and CARDLOCK. User tokens are valid and ready for use once the installation is complete. Every user token is supplied with a corresponding shadow card. As user tokens are issued, the name of the user is marked on the shadow card. If a user is to be barred, or a user token is lost, the shadow card marked with the user’s name is presented to all readers on site. This simple action invalidates the user token. Another user token may be issued for that user.

Additional features can be programmed using the PROXIMITY or CARDLOCK function card pack. These features include zoning which allows you to limit access by token color.

TOUCH LOCK. If a valid code is entered access is granted. Codes are changed via the keypad using the master code.

PROXIMITY KP keypad. Choose card & code, card & PIN, card only or code only.
