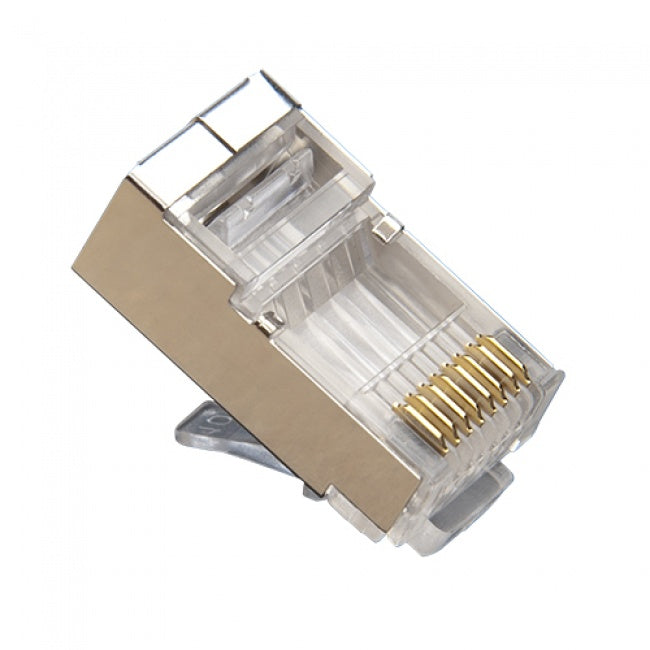

Built with a hi-lo stagger design to isolate each conductor at the point of termination making the end result a performance beyond enhanced Cat5e. The internal channels make it a quick & easy prep for termination without using any extra pieces!
- Eight conductor shielded internal ground
- Conductors with an OD range of 0.034
- 24 AWG
- Insulation Diameter (Conductor) - Size range: 0.034” – 0.039” (0.86 –0.99mm)
- 3 prong contact for solid conductors only
- Max cable jacket OD 0.260" (6.6mm)
- RoHS & UL compliant
- Contact Material: Phosphor Bronze
- Contact Plating: 50 micron gold
- Plug Material: Polycarbonate UL94-V2
