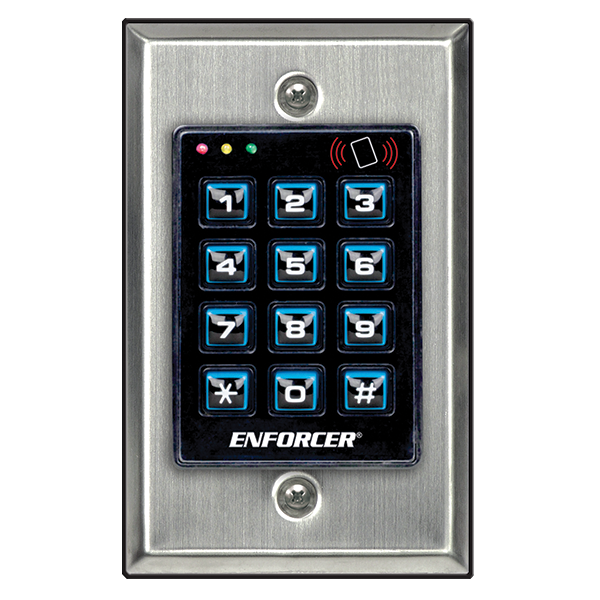

Description
- Built-in proximity card reader
- 12~24 VAC/VDC Auto-adjusting operation
- Up to 1,000 possible user codes (000~999) and/or proximity cards programmable for output #1, 100 (001~100) for output #2, and 100 (001~100) for output #3
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited time use (1~99 hours)
- Output #1: Form C relay, 1A@30VDC max.
- Output #2: Form C relay, 1A@30VDC max.
- Output #3: Transistor ground, 100mA@24VDC
- Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Tamper output: N.C. Dry contact, 50mA@24VDC max.
- Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
- Mounts to a standard single-gang back box (surface-mount back box included)
- All features are programmed directly from the keypad: No need for an external programmer
- EEPROM Memory protects programmed information in case of power loss
- Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, and 10 (01~09) for output #3
- Duress code signals a silent alarm if an authorized user is forced to open the door under duress
- Egress input lets users exit the premises without keying in the code
- Door sensor input for anti-tailgating operation
- Interlocking input for connecting to a second keypad
- Keypad active or alarm output selectable via jumper
Specifications
| Current Draw | Standby: 66mA@12VDC, Keypress: 93mA@12VDC, O/P 1 active: 99mA@12VDC, O/P 1 & 2 active: 126mA@12VDC, O/P 1, 2 & 3 active: 127mA@12VDC, Total max. current draw: 160mA@12VDC |
| Operating Voltage | 12~24 VDC / VAC |
| Relay Output- #1 | 1A@30VDC, Form C |
| Relay Output- #2 | 1A@30VDC, Form C |
| Relay Output- Transistor Ground | 100mA@24VDC |
| Relay Output- K or A | 100mA@24VDC |
| Relay Output- Duress | 100mA@24VDC |
| Relay Output- Interlock | 100mA@24VDC |
| Relay Output- Tamper | 50mA@24VDC |
| Egress Inputs | N.O. Ground |
| Door Inhibit Input | N.O. Ground |
| Door Sensor Input | N.C. Ground |
| Proximity Reader Frequency | 125kHz (EM125) |
| Proximity Reader Sensing Distance | 1-1/2” (38mm) |
| Operating Temperature | -4°~158° F (-20°~70° C) |
| Operating Humidity | 5~95% Non-condensing |
| Dimensions | 4-5/8″x2-7/8″x1-1/2″ (117x73x38 mm) |
| Weight | 6-oz (170g) |
