Description

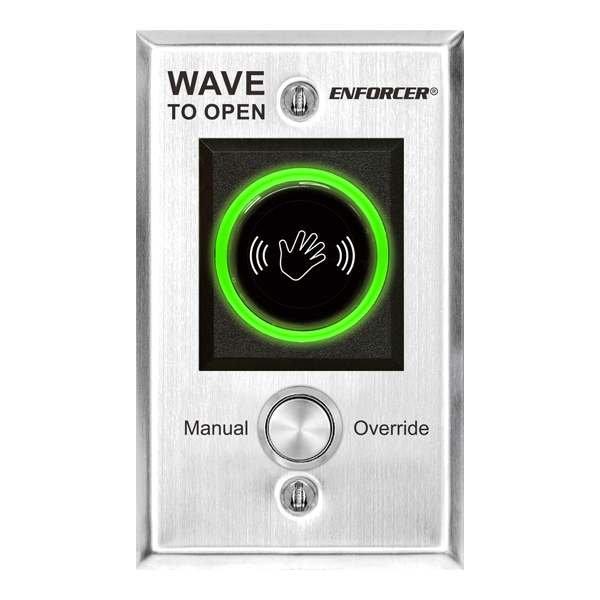

The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. The SD-927PKC-NEVQ adds a manual override button. Also available with Spanish (SD-927PKC-NSQ, SD-927PKC-NSVQ)
- Conforms to UL294
- Dual voltage, 12~24 VAC/VDC
- Range adjustable from 2-3/8″~8″ (6~20 cm)
- Stainless steel single-gang plate
- 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
- LED illuminated sensor area for easy identification
- Quick connect screw-less terminal block
- Selectable LED colors (turns from red to green or green to red) when activated
- Adds manual override button as a backup to the sensor
Specifications
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw | 120mA@12VDC |
| Relay Type | Form C dry contact, 3A@24VDC |
| Override Button – Switching capacity | 3A@24VDC |
| Override Button – Mechanical life | 500,000 cycles |
| Response Time | 10ms |
| LEDs – Standby | Red* |
| LEDs – Triggered | Green* |
| Output Time | Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered |
| Range | Adjustable, 2-3/8″~8″ (6-20 cm) |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Weight | 3.9-oz (110g) |
