Description

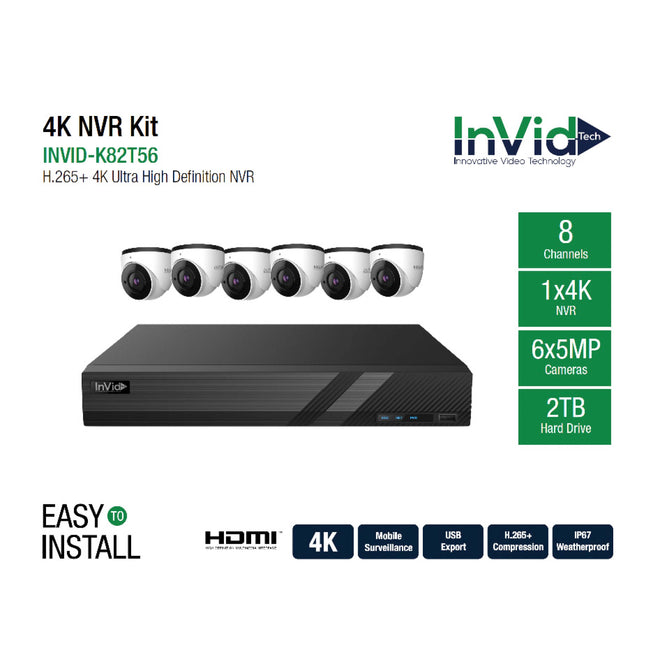

8 Channel NVR with 2 TB + (6) 5-Megapixel Cameras NDAA Compliant
Camera Features
- 5 Megapixel Resolution
- Fixed Lens
- True Day/Night with IR Range up to 98’
- H.265+,H.265,H.264+,H.264
- 20 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Audio Input: Built-in Mic
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Supports Corridor Mode
- Supports Native Chrome/EDGE Use
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
NVR Features
- Up to 8 Megapixel Resolution Recording
- 80 Mbps Bit Rate Input
- Supports up to 8 channel simultaneous playback
- Smart Analytic Support
- Local HDMI main monitor output with 4K support
- Local VGA main monitor output up to 1080p
- True P2P Connectivity with QR Code Connect
- Multiple video search options including
- Smart Search for quick retrieval of footage.
- H.265S/ H.265+/ H.265/ H.264
- 1 Hard Drive Bay
- Free Central Management Software (CMS)
- Free iOS & Android Apps for
- Smart Phones & Tablets
- Free MAC Client
|
Image Sensor |
1 / 2.7 "CMOS |
|
Image Size |
2880×1620 |
|
Electronic Shutter |
1 s ~ 1 / 100000 s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.007 lux @F1.6, AGC ON; 0 lux with IR |
|
Lens |
2.8mm@F1.6, Horizontal FoV:110.5°;Vertical FoV:57°; Diagonal FoV:131° |
|
Focus |
Fixed |
|
Lens Mount |
M12 |
|
Day&Night |
ICR |
|
Wide Dynamic Range |
120db |
|
BLC |
Yes |
|
HLC |
Yes |
|
Digital NR |
Yes |
|
Angle Adjustment |
Pan: 0° ~ 360°; Tilt:0° ~ 75°; Rotation: 0° ~ 360° |
Image |
|
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG |
|
H.265 Compression Standard |
Main Profile@Leve4.1 High Tier |
|
Resolution |
5MP ( 2880 × 1620 ), 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 480× 240, CIF |
|
Main Stream |
60Hz: 5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps); 50Hz: 5MP(1~20fps)/4MP/3MP/1080P/720P(1~25fps) |
|
Sub Stream |
60Hz: 720P/D1/CIF (1~30fps);50Hz: 720P/D1/CIF (1~25fps) |
|
Third Stream |
60Hz: D1/480× 240/CIF (1~30fps); 50Hz: D1/480× 240/CIF(1~25fps) |
|
Bit Rate |
64 Kbps ~ 8 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|
ROI |
Each ROI to be configured separately |
Functions |
|
|
Remote Monitoring |
Web browser, Paramont NVR, Paramont CMS AI, Paramont CMS Mobile APP |
|
Web Browser |
IE (plug-in required)/Google Chrome/Edge/Firefox/Safari |
|
Online Connection |
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
|
Interface Protocol |
ONVIF Profile T |
|
Storage |
Network remote storage |
|
Smart Alarm |
Motion detection |
|
Intelligent Analytics |
Object removal detection (object left/missing), scene change detection, video blur detection, intrusion detection and line crossing detection |
|
General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
|
PoE |
Yes |
|
IR Distance |
98’ |
|
Ingress Protection |
IP67 |
DORI Distance |
|
|
Lens |
Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
|
2.8mm |
195.8(59.67m) 78.3(23.87m) 39.1(11.93m) 19.6(5.97m) |
Interfaces |
|
|
Network |
RJ45 |
|
Video Output |
No |
|
Audio |
1CH audio input; 1CH built-in MIC |
|
Storage |
Built-in micro SD card slot, up to 256GB |
|
Reset |
Yes |
Others |
|
|
Power Supply |
DC12V/PoE |
|
Power Consumption |
< 5.5W |
|
Operating Environment |
-22°F ~ 140°F (- 30 °C ~ 60 °C) Humidity:less than 95 % (non-condensing) |
|
Storage Environment |
-22°F ~ 149°F (- 30 °C ~ 65°C), Humidity: less than 95 % (non-condensing) |
|
Dimensions |
Φ 3.72” x 3.26” (94.6 × 82.8mm) |
|
Weight ( net ) |
Approx. 0.99lb (0.45KG) |
|
Installation |
Ceiling mounting (Wall mounting available with the junction box and bracket) |
|
Certificate |
CE, FCC, ETL: 5025761 |
|
Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/200 |
|
OS |
Embedded Linux |
Video |
|
|
Network Input |
8CH IPC input |
|
Network Input Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Output |
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
|
Compression |
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
Audio |
|
|
Network Input |
H.265S /H.265+ / H.265 / H.264 |
|
2-way Audio |
8 CH IPC audio input |
|
Local Output |
RCA × 1 |
|
Compression |
RCA × 1 |
Record |
|
|
Resolution |
G.711(U/A) |
|
Frame Rate |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
Playback |
|
|
Simultaneous Playback |
NTSC:30fps; PAL:25fps |
|
Search |
Time slice / time / event / tag / smart search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Decoding Capability |
|
|
Live View/ Playback |
1CH 8MP;4CH 1080P |
Alarm |
|
|
Mode |
Manual, sensor, motion, exception, smart events |
|
Input |
Supports IPC alarm input |
|
Output |
Supports IPC alarm output |
|
Triggering |
Record, snap, preset, e-mail, etc. |
Other Functions |
|
|
Plate Recognition |
Yes |
|
Fisheye |
No |
Video Structure Analysis |
|
|
Human/Vehicle Classification |
Yes |
Network |
|
|
Interface |
RJ 45 × 1 (10/100/1000Mbps) |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF |
|
Incoming/ Outgoing Bandwidth |
80/80 (Mbps) |
|
Client Connection |
Max. 10 users access |
Mobile Device |
|
|
OS |
iOS, Andriod |
Storage |
|
|
HDD Interface |
SATA3.0 × 1, max 14TB |
Backup |
|
|
Local Backup |
USB, USB To HDD (1TB Max) |
|
Network Backup |
Yes |
Port |
|
|
USB |
USB 2.0 × 2 |
|
Remote Controller |
Included |
PoE |
|
|
PoE Ports |
100M RJ45 × 8 |
|
Standards |
IEEE802.3AF/AT |
|
Output Power |
≤ 96W |
Others |
|
|
Power Supply |
DC 48V/2.5A |
|
Consumption |
≤ 10W ( without HDD ) |
|
Dimensions ( W × D × H ) |
11.8 x 9.8 x 1.7 In (300 × 249 × 45 mm) |
|
Working Environment |
14°F ~122°F (-10 ~ 50 ℃)10% ~ 90% humidity |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
