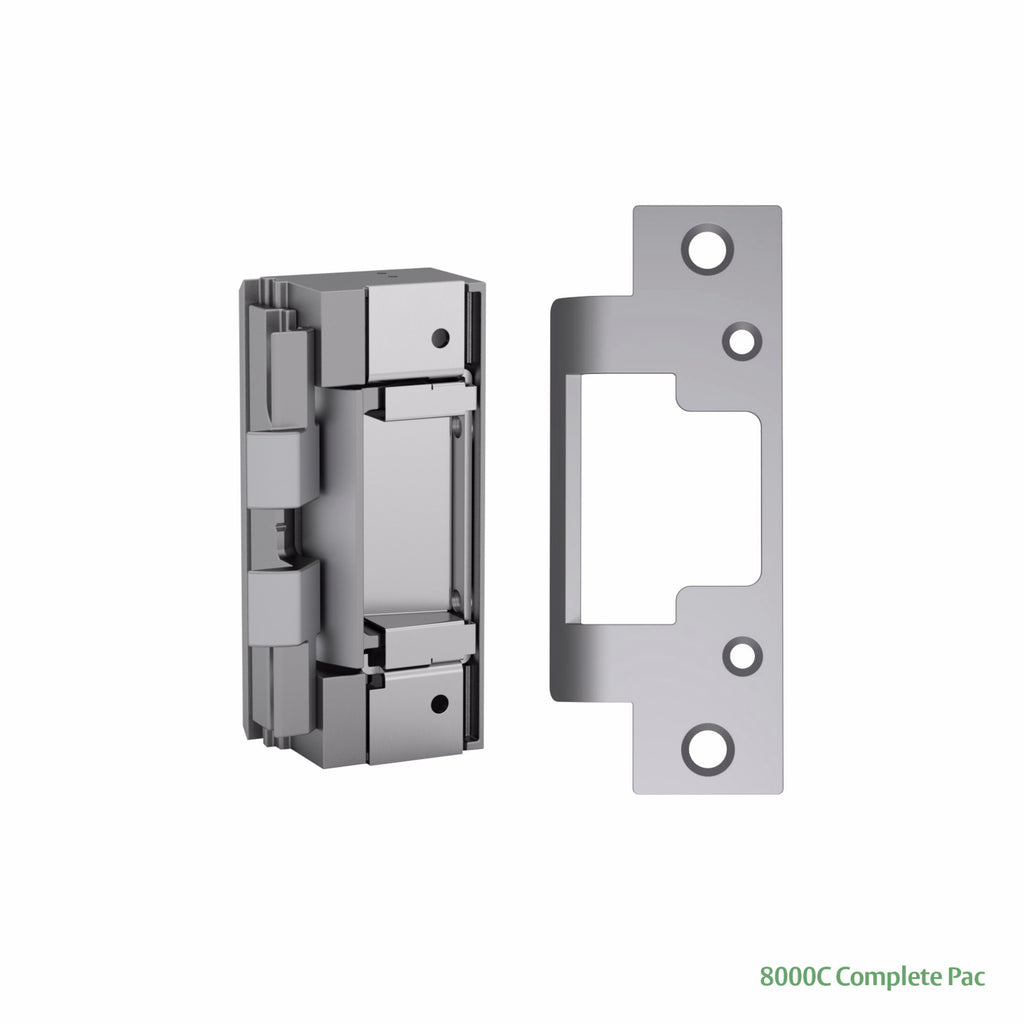

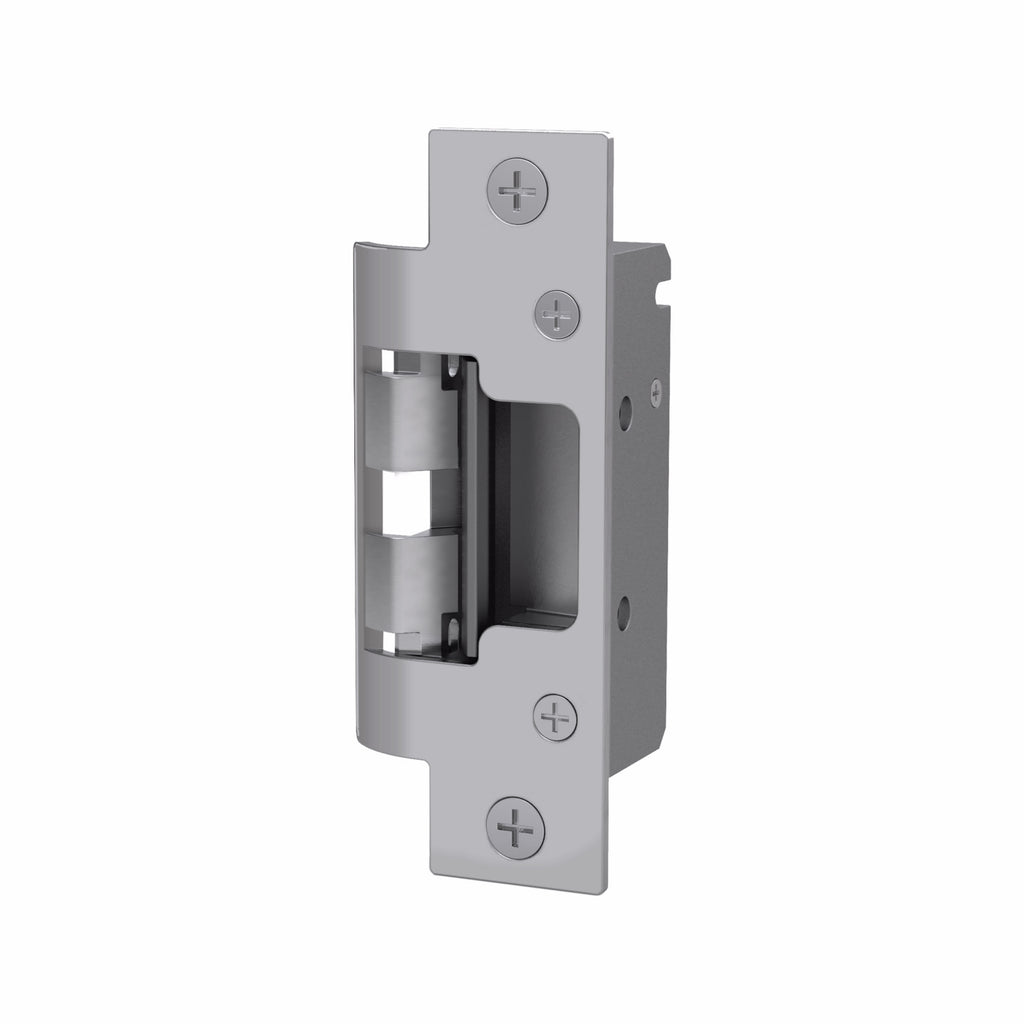

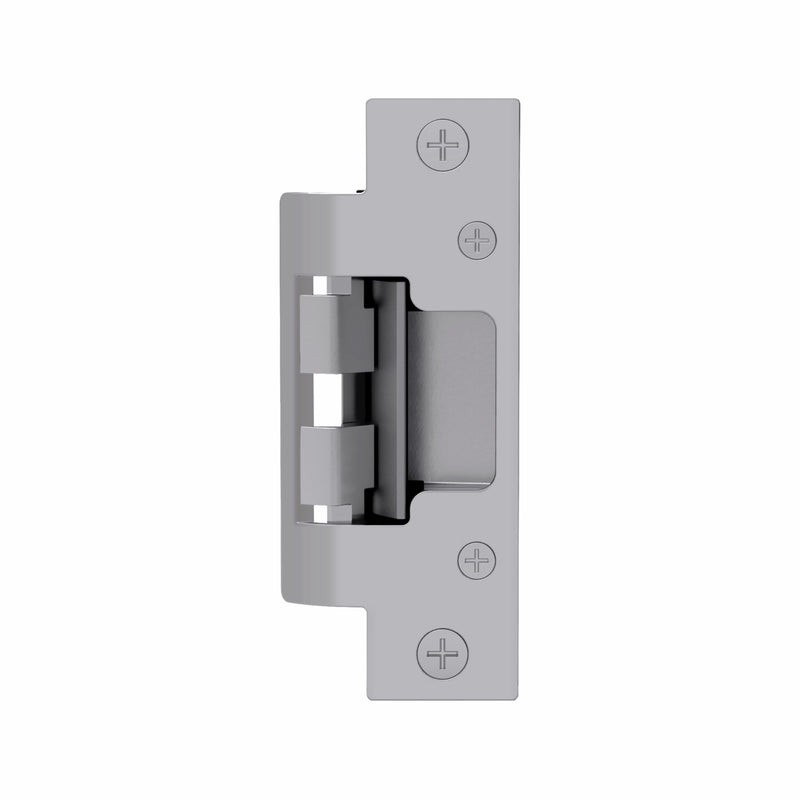

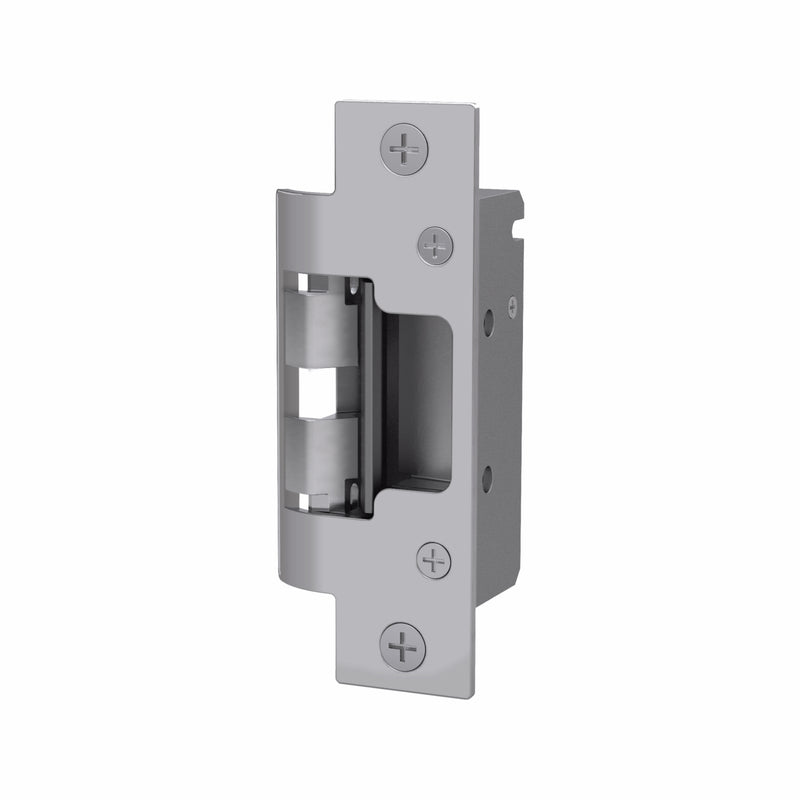

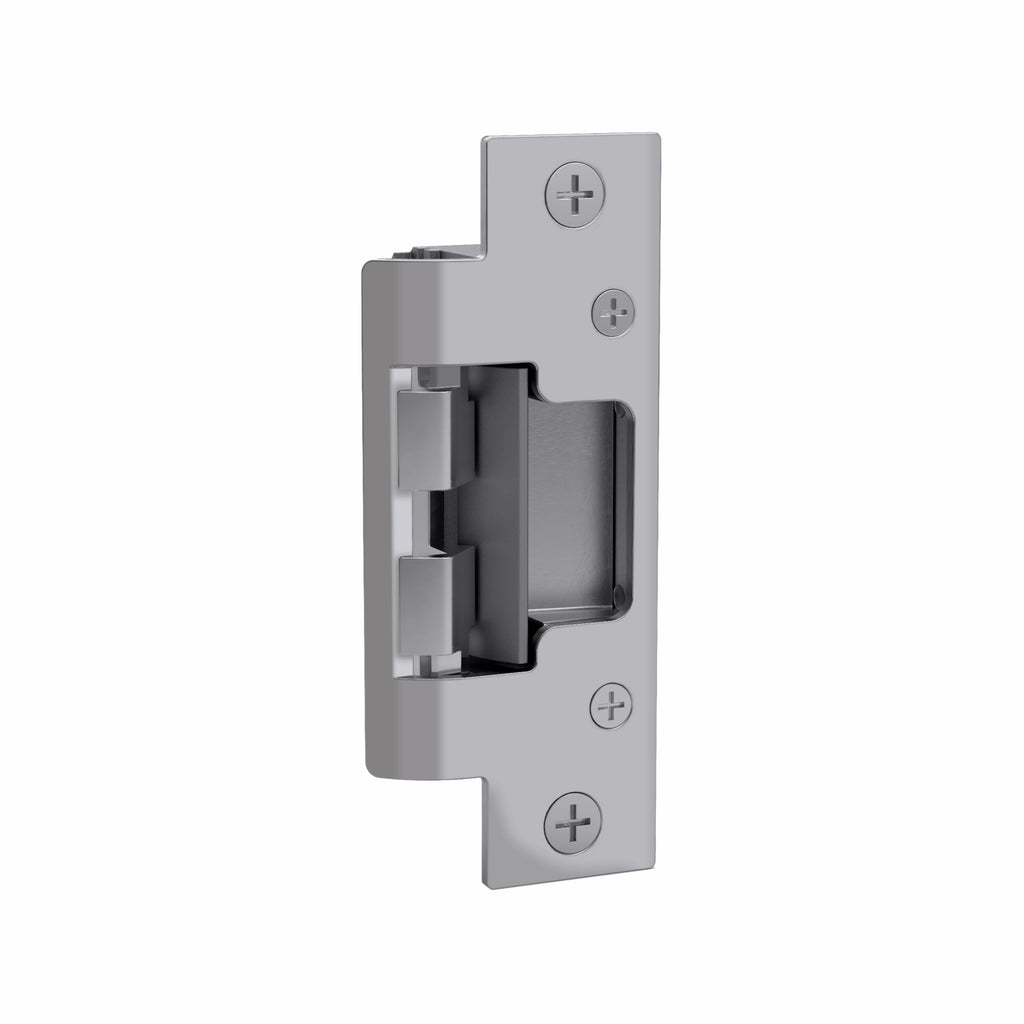

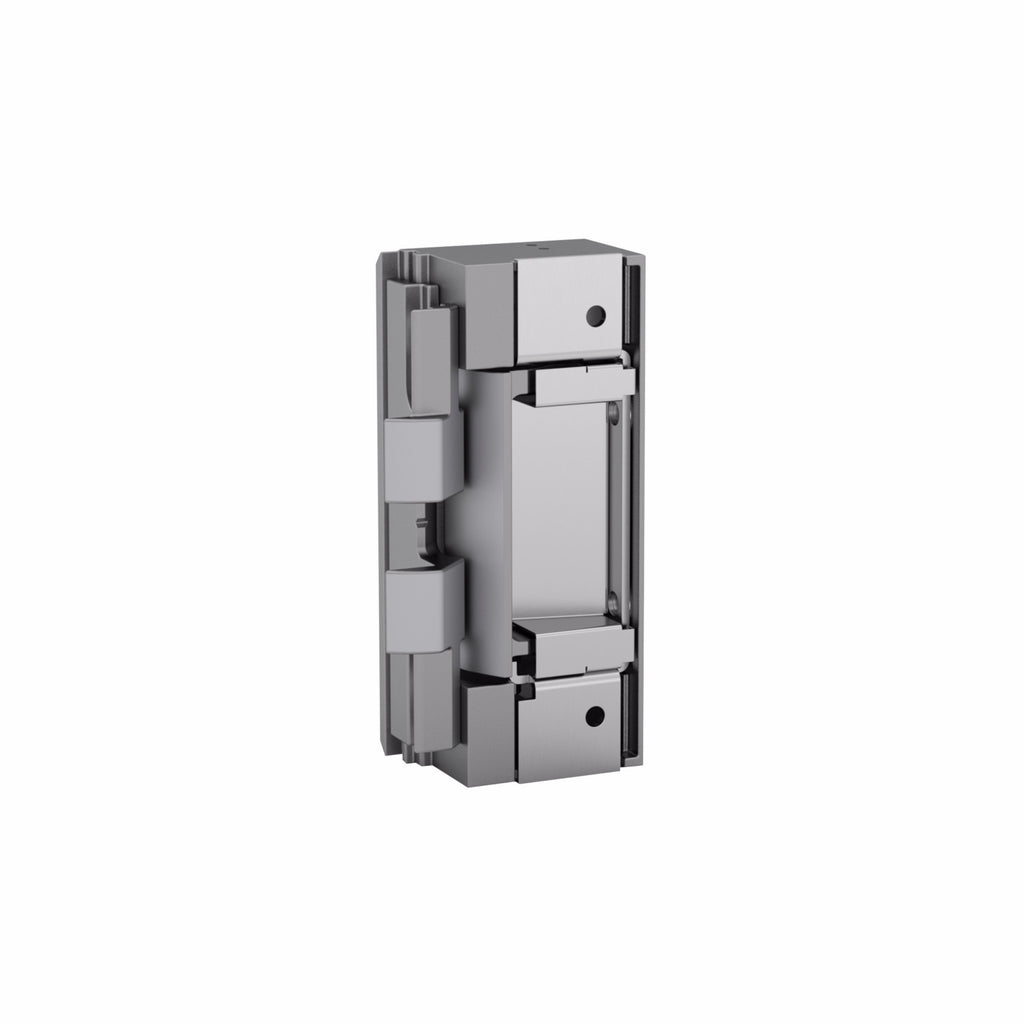

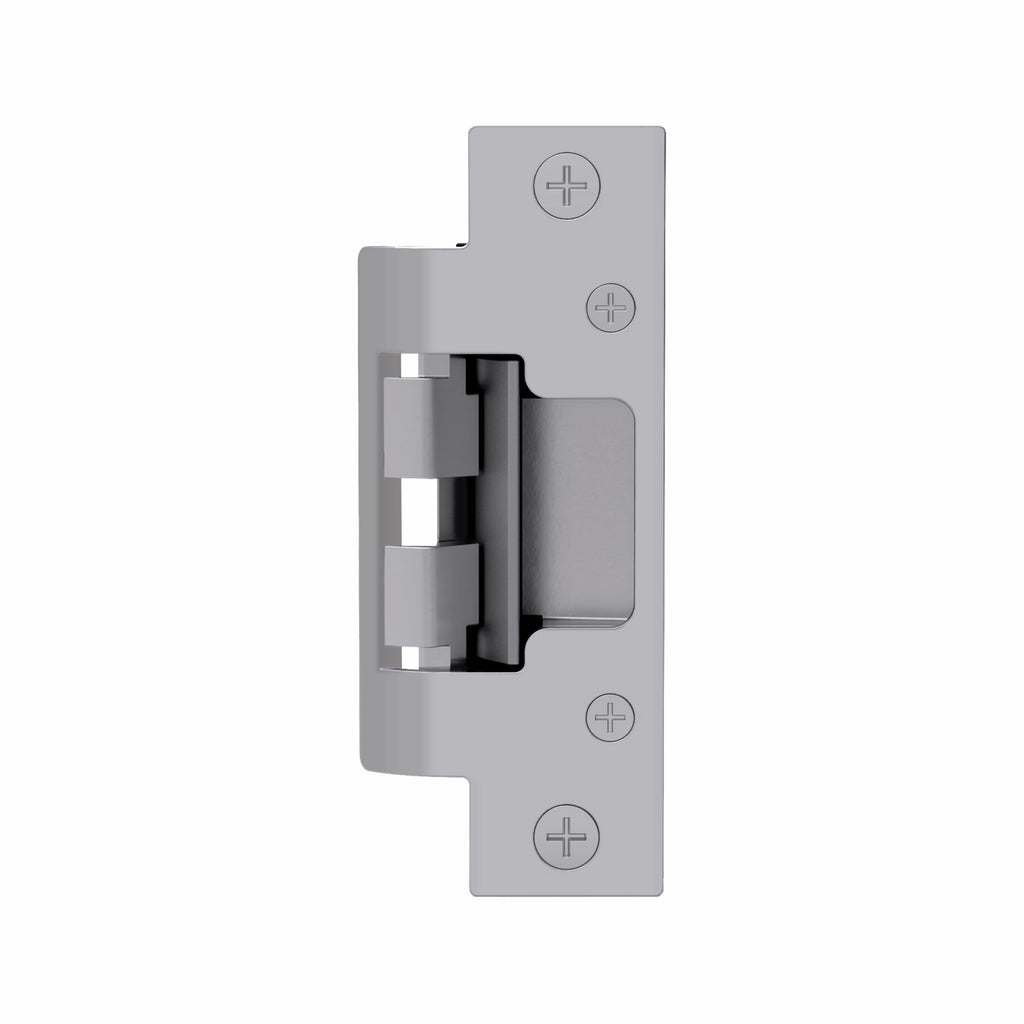

HES 8000C-630 8000 Series Electric Strike, Includes 801 and 801A Faceplates, Satin Stainless Steel

HESSKU: 8000C-630

Price:
Sale price$140.00
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The concealed electric strike solution for cylindrical locksets.

The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Product Features

  • No cutting on frame required

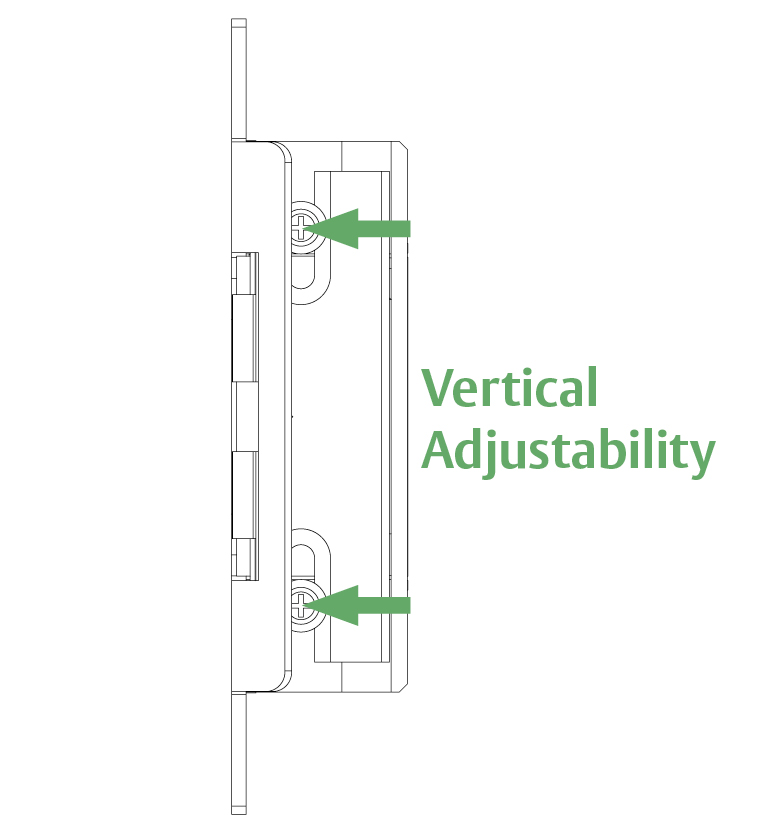

  • Vertical adjustability to accommodate door sag and misalignment
  • Tamper resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/fail safe
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" – 5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Strike body width decreased to 1-7/16" to increase frame compatibility
  • Dual voltage 12 or 24 VDC/VAC

HES No Cut Feature Image  HES 8000 Series Electric Strike Feature Image 2

SPECIFICATIONS
Application
  • Adjustability : Vertical
  • Surface Mounting : No cutting required
  • Frame Material : Metal|Wood
  • Shim Type : NA
  • Latchbolt Accommodation : 1/2" - 5/8"
Electrical
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured
  • Monitoring Options : Latchbolt Monitoring
Strength & Durability
  • Endurance (cycles) : 1,000,000
  • Dynamic Strength (ft-lbs) : 70
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
  • Grade : Grade 1
General Specifications
  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Cylindrical Lock

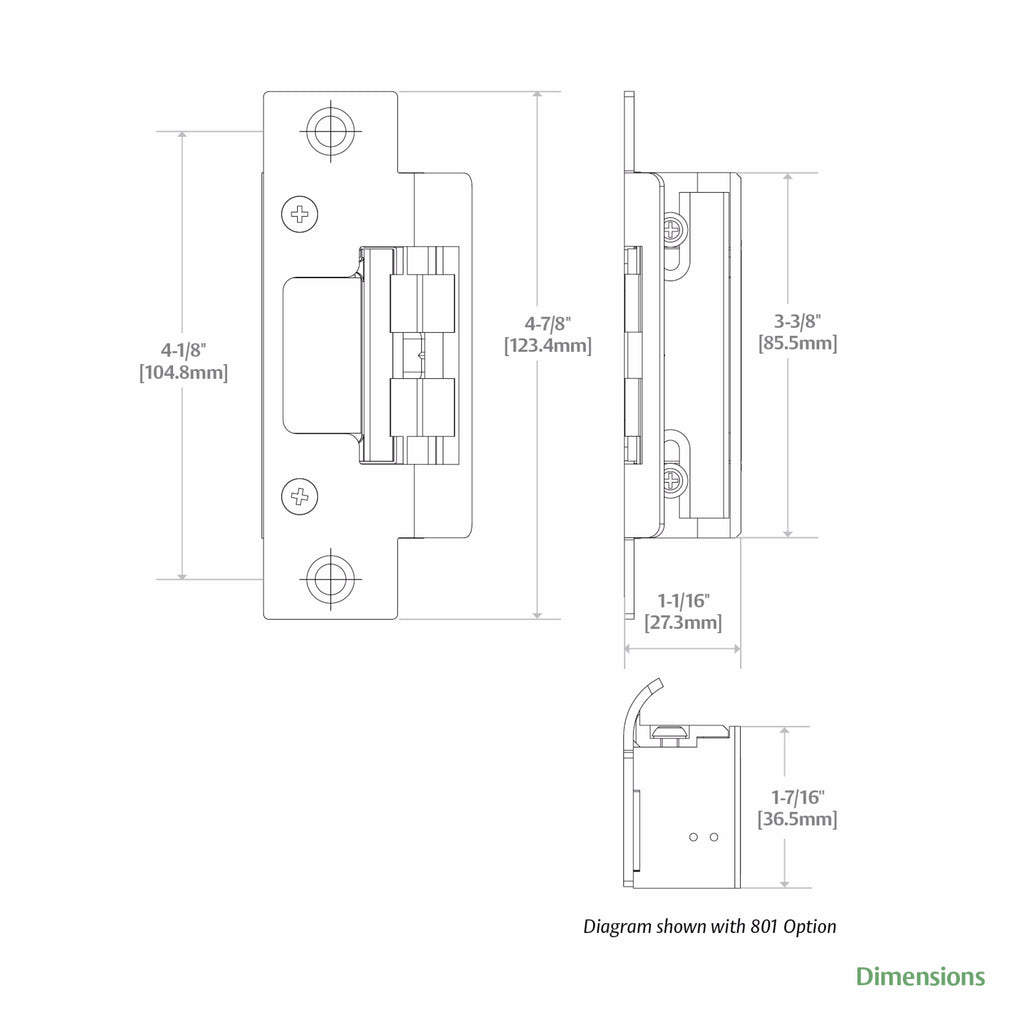

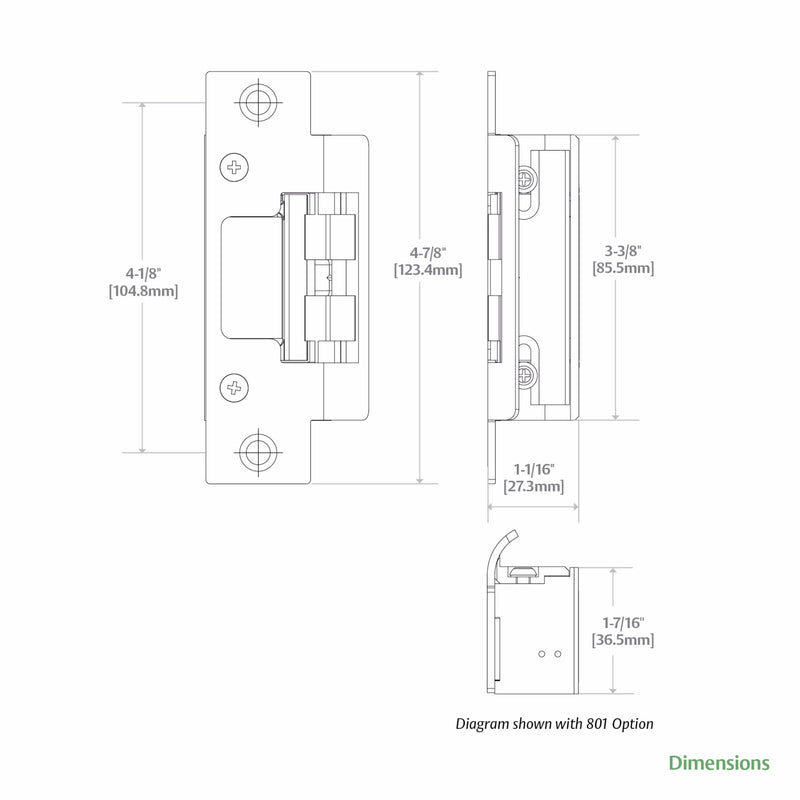

Weights & Dimensions
  • Strike Body Depth (in) : 1.0625
  • Strike Body Height (in) : 4.875
Certifications
  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL294 Listed

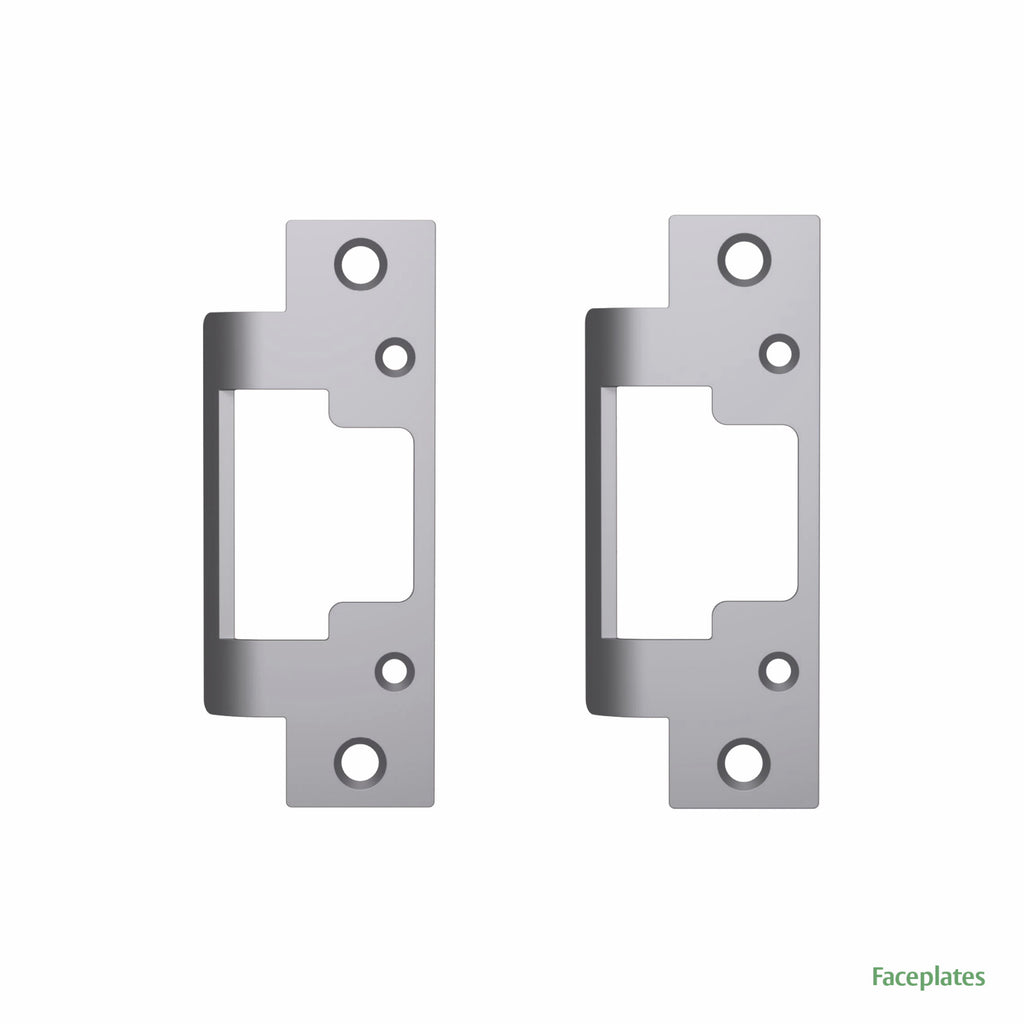

FACEPLATE

801A Option Faceplate
  • (4.875 H x 1.25 W) For use with: Cylindrical locksets with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames.
801E Option Faceplate
  • (4.875 H x 1.25 W) For use with: Extended lip for 'knock-down' style frame installations. For use with cylindrical latchbolts up to 5/8" throw.
802 Option Faceplate
  • (7.9375 H x 1.4375 W) For use with: Cylindrical locksets with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames.
801 Option Faceplate
  • (4.875 H x 1.25 W) For use with: Cylindrical locksets in ANSI metal jambs, with latchbolts up to 5/8" throw.
803 Option Faceplate
  • (6.875 H x 1.25 W) For use with: Cylindrical locksets with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames.
805 Option Faceplate
  • (9 H x 1.375 W) For use with: Cylindrical locksets. For use with latchbolts up to 5/8" throw Four point mounting for wood installations.
